MP5001 - 5V Programmable Current Limit Switch

Description

The MP5001 is a protection device designed to protect circuitry on the output (source) from transients on input (VCC).

It also protects VCC from undesired shorts and transients coming from the source.

At start up, inrush current is limited by limiting the slew rate at the source.

Features

  • Integrated 44mΩ Power FET withstand 20V.
  • Enable/Fault Pin.
  • Adjustable Slew Rate for Output Voltage.
  • Adjustable Current Limit.
  • Thermal Protection.
  • Over Voltage Limit.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MP5005 50 Amp Single Phase Bridge Rectifier Micro Commercial Components
MP5005 PRESS-FIT MOTOLOLA DIODES Shunye
MP5005W Single Phase Bridge Rectifier MCC
MP5006 50 Amp Single Phase Bridge Rectifier Micro Commercial Components
MP5007 50 Amp Single Phase Bridge Rectifier Micro Commercial Components

Other Datasheets by Monolithic Power Systems

Part Number Description
MP5000 5A Programmable Current Limit Switch
MP5000A 5A Programmable Current Limit Switch
MP5000ADQ 5A Programmable Current Limit Switch
MP5000DQ 5A Programmable Current Limit Switch
MP5000S 5A Programmable Current Limit Switch

Full PDF Text Transcription

Click to expand full text

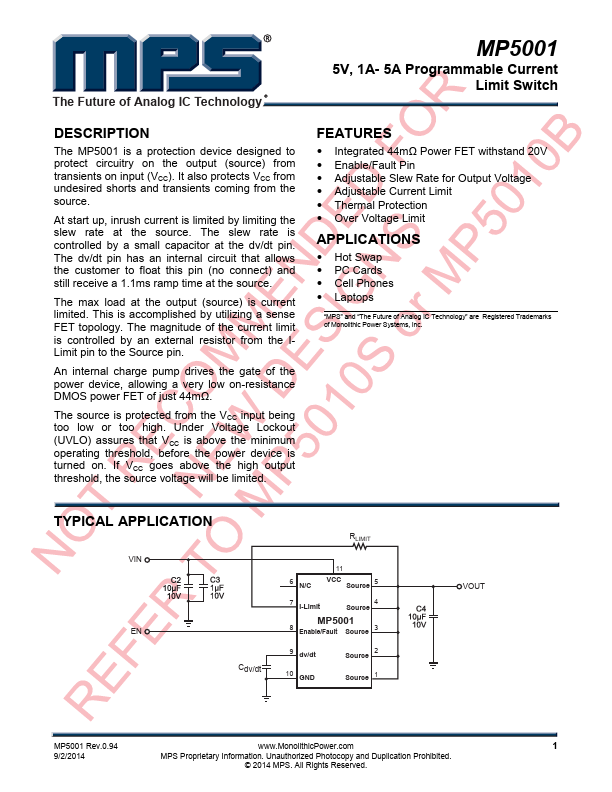

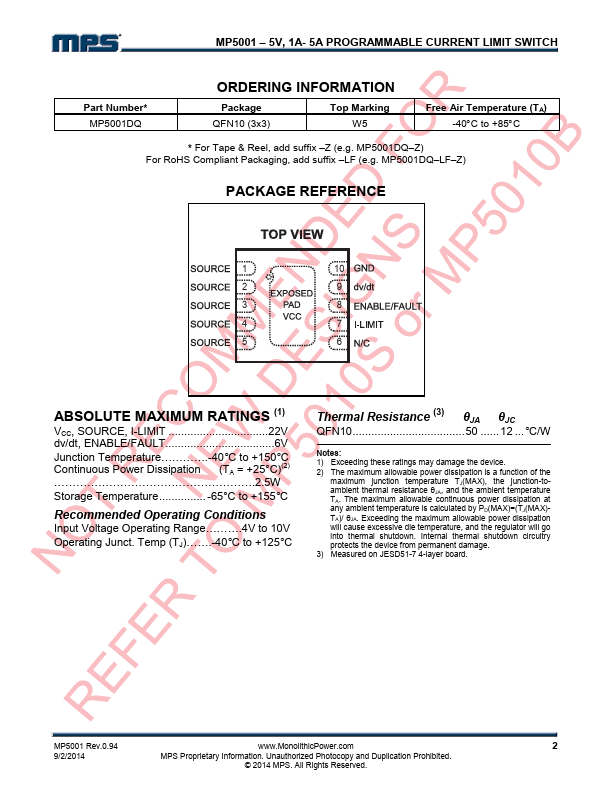

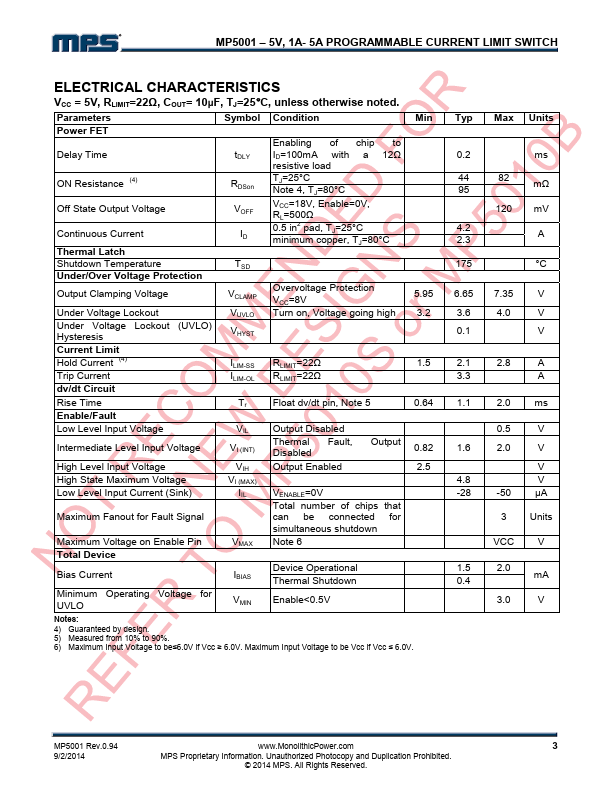

The Future of Analog IC Technology MP5001 5V, 1A- 5A Programmable Current Limit Switch DESCRIPTION The MP5001 is a protection device designed to protect circuitry on the output (source) from transients on input (VCC). It also protects VCC from undesired shorts and transients coming from the source. At start up, inrush current is limited by limiting the slew rate at the source. The slew rate is controlled by a small capacitor at the dv/dt pin. The dv/dt pin has an internal circuit that allows the customer to float this pin (no connect) and still receive a 1.1ms ramp time at the source. The max load at the output (source) is current limited. This is accomplished by utilizing a sense FET topology.
