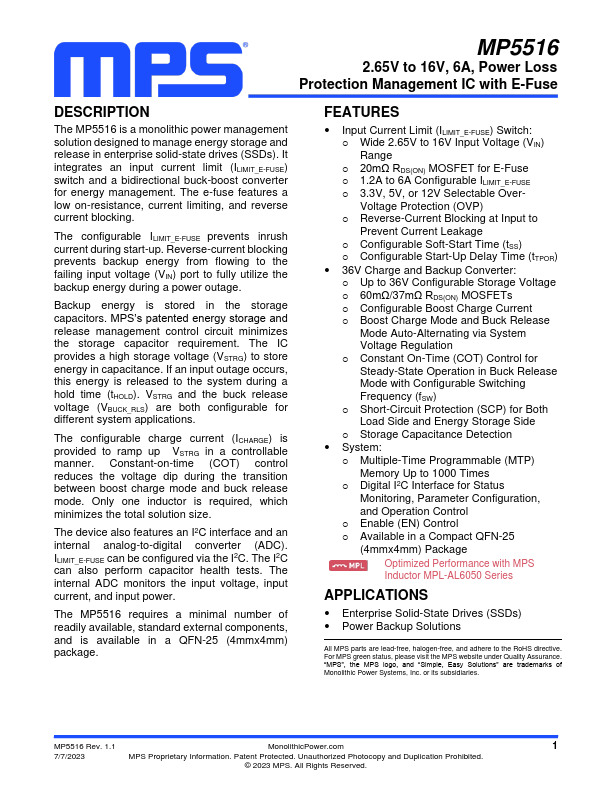

DESCRIPTION The MP5516 is a monolithic power management solution designed to manage energy storage and release in enterprise solid-state drives (SSDs). It integrates an input current limit (ILIMIT_E-FUSE) switch and a bidirectional buck-boost converter for energy management. The e-fuse features a low on-resistance, current limiting, and reverse current blocking. The configurable ILIMIT_E-FUSE prevents inrush current during start-up. Reverse-current blocking prevents backup energy from flowing to the failing input voltage (VIN) port to fully utilize the backup energy during a power outage. Backup energy is stored in the storage capacitors. MPS’s patented energy storage and release management control circuit minimizes the storage capacitor requirement. The IC provides a high storage voltage (VSTRG) to store energy in capacitance. If an input outage occurs, this energy is released to the system during a hold time (t HOLD). VSTRG and the buck release voltage (VBUCK_RLS) are both configurable for different system applications. The configurable charge current (ICHARGE) is provided to ramp up VSTRG in a controllable manner. Constant-on-time (COT) control reduces the voltage dip during the transition between boost charge mode and buck release mode. Only one inductor is required, which minimizes the total solution size. The device also features an I2C interface and an internal analog-to-digital converter (ADC). ILIMIT_E-FUSE can be configured via the I2C. The I2C can also perform capacitor health tests. The internal ADC monitors the input voltage, input current, and input power. The MP5516 requires a minimal number of readily available, standard external ponents, and is available in a QFN-25 (4mmx4mm) package. FEATURES - Input Current Limit (ILIMIT_E-FUSE) Switch: o Wide 2.65V to 16V Input Voltage (VIN) Range o 20mΩ RDS(ON) MOSFET for E-Fuse o 1.2A to 6A Configurable ILIMIT_E-FUSE o 3.3V, 5V, or 12V Selectable Over Voltage Protection (OVP) o Reverse-Current Blocking at Input...
