MPQ2166A - Synchronous Buck Regulator

Description

The MPQ2166A is an internally compensated, dual, PWM, synchronous, step-down regulator.

It operates from a 2.7V to 6V input, and generates an output voltage as low as 0.6V.

Features

  • include cycle-by-cycle current limiting and thermal shutdown. The MPQ2166A requires a minimal number of readily available, standard external components, and is available in a QFN-18 (2.5mmx3.5mm) package. MPQ2166A 6V, Dual 2A/2A or 3A/1A, Low IQ, Synchronous Buck Regulator with PG and SS, AEC-Q100 Qualified.

📥 Download Datasheet

Datasheet preview – MPQ2166A

📁 Similar Datasheet

  • MPQ2221 - NPN Transistor (Motorola)
  • MPQ2222 - QUAD TRANSISTORS (Central)
  • MPQ2222 - Quad Transistors (Motorola Semiconductor)
  • MPQ2222A - Quad Transistors (Motorola Semiconductor)
  • MPQ2222A - QUAD TRANSISTORS (Central Semiconductor)
  • MPQ2369 - NPN Silicon Quad Transistor (Central Semiconductor)
  • MPQ2369 - QUAD SWITCHING TRANSISTOR (Motorola)
  • MPQ2483 - QUAD AMPLIFIER TRANSISTOR (Motorola)
  • MPQ2484 - QUAD AMPLIFIER TRANSISTOR (Motorola)
  • MPQ2906 - PNP SILICON QUAD TRANSISTOR (Central Semiconductor)
Other Datasheets by MPS

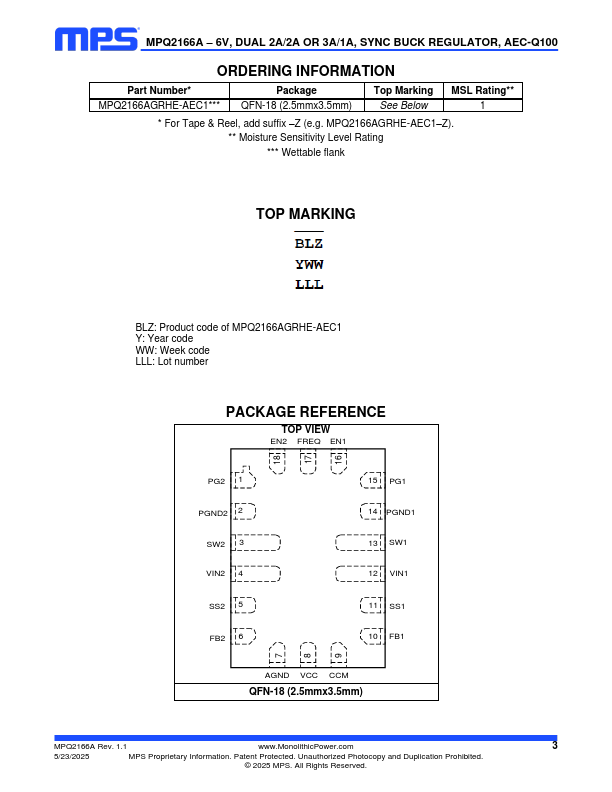

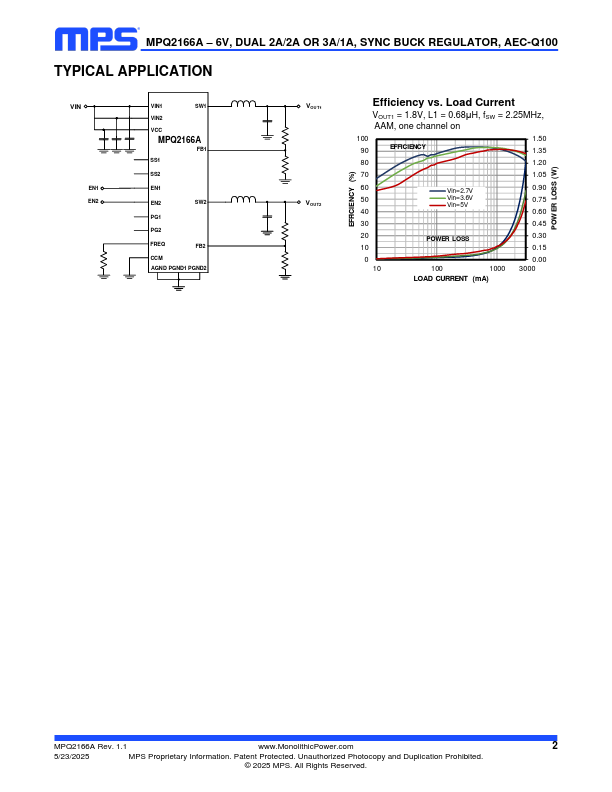

Full PDF Text Transcription

Click to expand full text

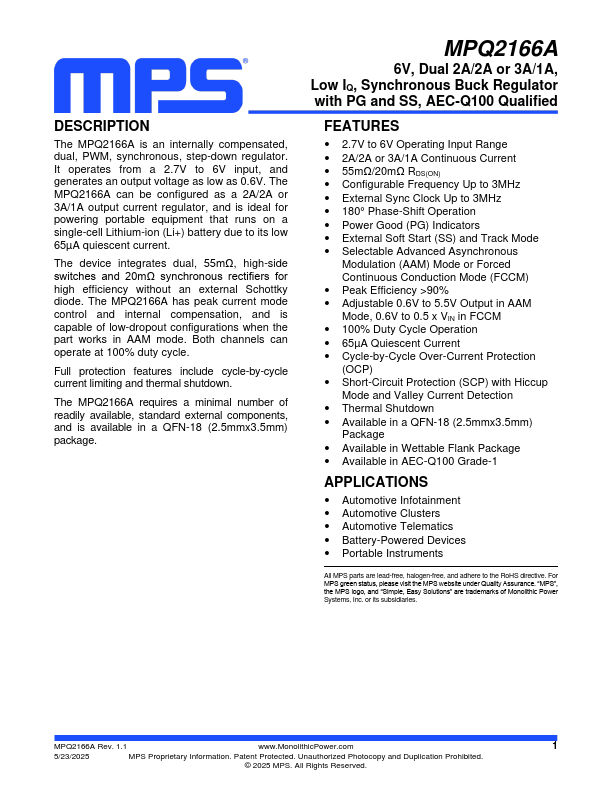

DESCRIPTION The MPQ2166A is an internally compensated, dual, PWM, synchronous, step-down regulator. It operates from a 2.7V to 6V input, and generates an output voltage as low as 0.6V. The MPQ2166A can be configured as a 2A/2A or 3A/1A output current regulator, and is ideal for powering portable equipment that runs on a single-cell Lithium-ion (Li+) battery due to its low 65µA quiescent current. The device integrates dual, 55mΩ, high-side switches and 20mΩ synchronous rectifiers for high efficiency without an external Schottky diode. The MPQ2166A has peak current mode control and internal compensation, and is capable of low-dropout configurations when the part works in AAM mode. Both channels can operate at 100% duty cycle.
