MPQ2451 - Industrial/Automotive-Grade 36V 2MHz 0.6A Step-Down Converter

General Description

The MPQ2451 is a high frequency, step-down, switching regulator with an integrated highvoltage high-side power MOSFET.

It efficiently provides up to a 0.6A output with current-mode control for fast loop response.

Key Features

  • Guaranteed Industrial/Automotive Temp. Range Limits.
  • 130μA Operating Quiescent Current.
  • Wide 3.3V-to-36V Operating Input Range.
  • 500mΩ Internal Power MOSFET.
  • 2MHz Fixed Switching Frequency.
  • Internally Compensated.
  • Stable with Ceramic Output Capacitors.
  • Internal Soft-Start.
  • Precision Current Limit Without Current Sensing Resistor.
  • >90% Efficiency.
  • Output Adjustable from 0.8V to 0.9.
  • VIN, Fixed 5V & 3.3V Output.
  • 6-Lead SOT23, TSOT23 an.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MPQ2483 QUAD AMPLIFIER TRANSISTOR Motorola
MPQ2484 QUAD AMPLIFIER TRANSISTOR Motorola
MPQ2221 NPN Transistor Motorola
MPQ2222 QUAD TRANSISTORS Central
MPQ2222 Quad Transistors Motorola Semiconductor

Other Datasheets by Monolithic Power Systems

Part Number Description
MPQ2451DG Industrial/Automotive-Grade 36V 2MHz 0.6A Step-Down Converter
MPQ2451DT Industrial/Automotive-Grade 36V 2MHz 0.6A Step-Down Converter
MPQ2459 Step-Down Converter
MPQ2459GJ Step-Down Converter
MPQ2483 2.5A Programmable Frequency LED Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

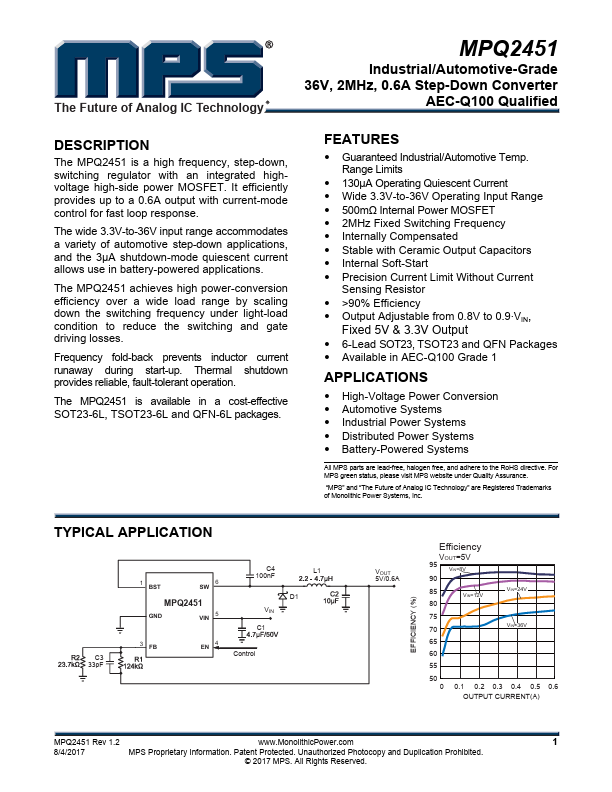

The Future of Analog IC Technology MPQ2451 Industrial/Automotive-Grade 36V, 2MHz, 0.6A Step-Down Converter AEC-Q100 Qualified DESCRIPTION The MPQ2451 is a high frequency, step-down, switching regulator with an integrated highvoltage high-side power MOSFET. It efficiently provides up to a 0.6A output with current-mode control for fast loop response. The wide 3.3V-to-36V input range accommodates a variety of automotive step-down applications, and the 3μA shutdown-mode quiescent current allows use in battery-powered applications. The MPQ2451 achieves high power-conversion efficiency over a wide load range by scaling down the switching frequency under light-load condition to reduce the switching and gate driving losses. Frequency fold-back prevents inductor current runaway during start-up.
