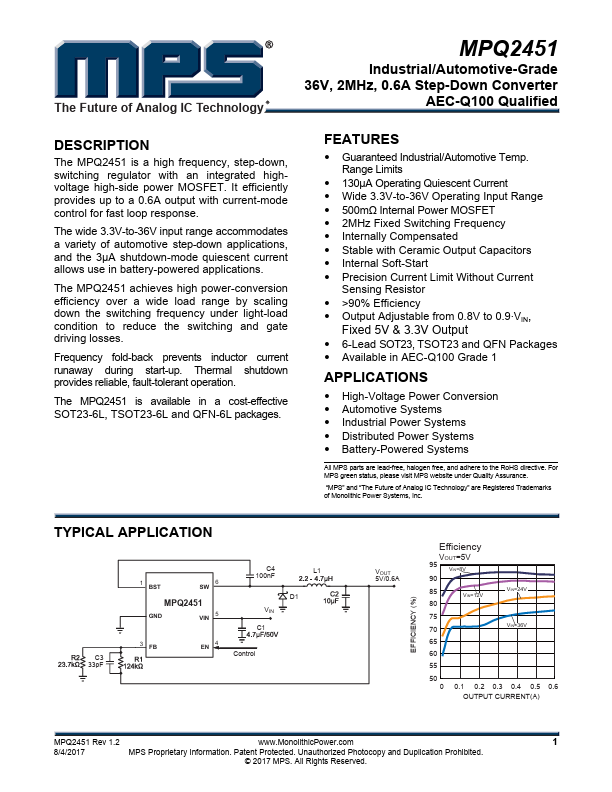

MPQ2451DT Datasheet Industrial/automotive-grade 36v 2mhz 0.6a Step-down Converter

Manufacturer: Monolithic Power Systems

Overview: The Future of Analog IC Technology MPQ2451 Industrial/Automotive-Grade 36V, 2MHz, 0.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Datasheet Details

Part number	MPQ2451DT
Manufacturer	Monolithic Power Systems
File Size	643.39 KB
Description	Industrial/Automotive-Grade 36V 2MHz 0.6A Step-Down Converter
Datasheet	MPQ2451DT MPQ2451 Datasheet (PDF)

General Description

The MPQ2451 is a high frequency, step-down, switching regulator with an integrated highvoltage high-side power MOSFET.

It efficiently provides up to a 0.6A output with current-mode control for fast loop response.

The wide 3.3V-to-36V input range accommodates a variety of automotive step-down applications, and the 3μA shutdown-mode quiescent current allows use in battery-powered applications.

Key Features

Guaranteed Industrial/Automotive Temp. Range Limits.
130μA Operating Quiescent Current.
Wide 3.3V-to-36V Operating Input Range.
500mΩ Internal Power MOSFET.
2MHz Fixed Switching Frequency.
Internally Compensated.
Stable with Ceramic Output Capacitors.
Internal Soft-Start.
Precision Current Limit Without Current Sensing Resistor.
>90% Efficiency.
Output Adjustable from 0.8V to 0.9.
VIN, Fixed 5V & 3.3V Output.
6-Lead SOT23, TSOT23 an.
