MX23L6413 - 64M-BIT FLASH COMPATIBLE MASK ROM

Description

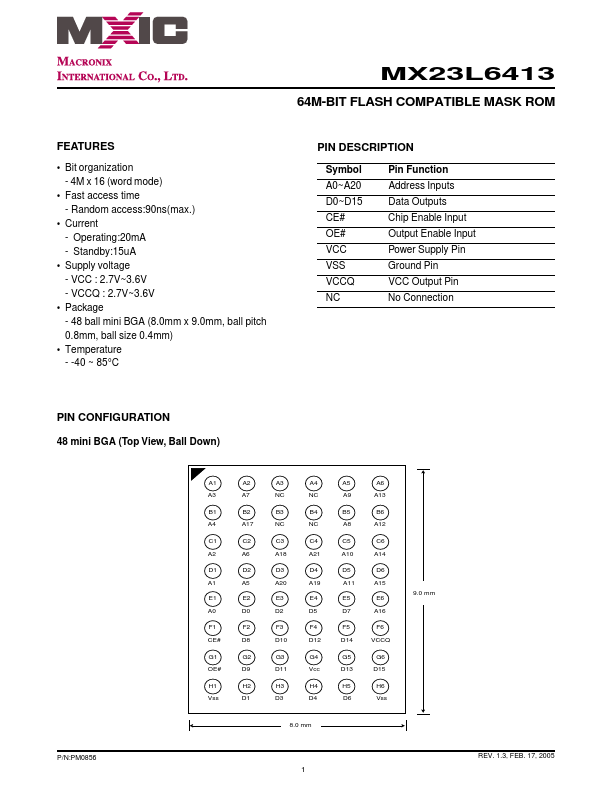

Symbol A0~A20 D0~D15 CE# OE# VCC VSS VCCQ NC Pin Function Address Inputs Data Outputs Chip Enable Input Output Enable Input Power Supply Pin Ground Pin VCC Output Pin No Connection ee DataSh DataSheet4U.com PIN CONFIGURATION 48 TSOP (Top View) A15 A14 A13 A12 A11 A10 A9 A8 A21 A20 NC NC NC NC A19

Features

  • Bit organization - 4M x 16 (byte mode).
  • Fast access time - Random access:90ns(max. ).
  • Current - Operating:20mA - Standby:15uA.
  • Supply voltage - VCC : 2.7V~3.6V - VCCQ : 2.7V~3.6V.
  • Package - 48 pin TSOP (12mm x 20mm) - 48 ball mini BGA (8.0mm x 9.0mm, ball pitch 0.8mm, ball size 0.4mm).
  • Temperature - -40 ~ 85° C PIN.

📥 Download Datasheet

Datasheet Details

Part number MX23L6413
Manufacturer Macronix
File Size 487.69 KB
Description 64M-BIT FLASH COMPATIBLE MASK ROM
Datasheet download datasheet MX23L6413 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MX23L6451 64M-BIT [64M x 1] CMOS SERIAL MASK-ROM MACRONIX
MX23L12814 128M-BIT MASK ROM Macronix
MX2300 N-Channel Enhancement Mode Power MOSFET ChipSourceTek
MX2300C N-Channel Power MOSFET ChipSourceTek
MX2301 P-Channel Power MOSFET ChipSourceTek

Other Datasheets by Macronix

Part Number Description
MX23L6410 64M-BIT (8M x 8 / 4M x 16) Mask ROM
MX23L6410A 64M-BIT PAGE MODE MASK ROM
MX23L6410ATC-70 64M-BIT PAGE MODE MASK ROM
MX23L6410ATC-70G 64M-BIT PAGE MODE MASK ROM
MX23L6410ATC-90 64M-BIT PAGE MODE MASK ROM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

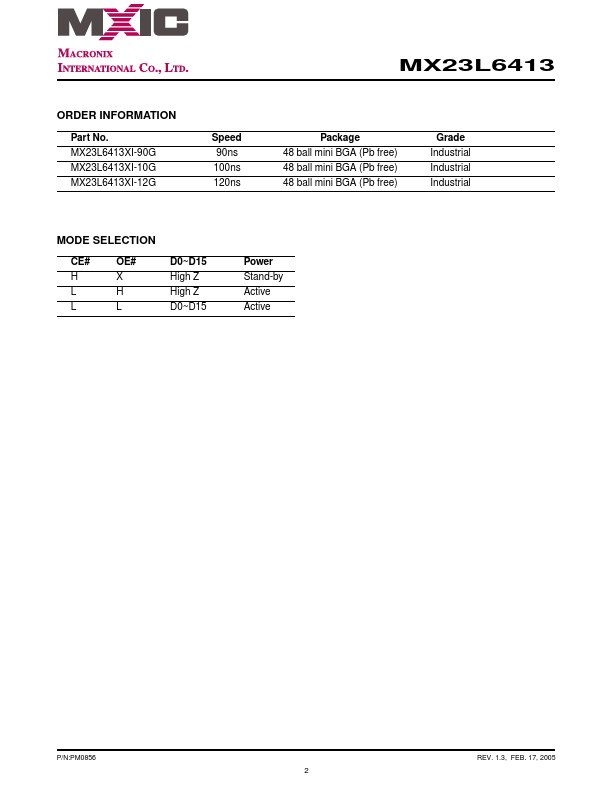

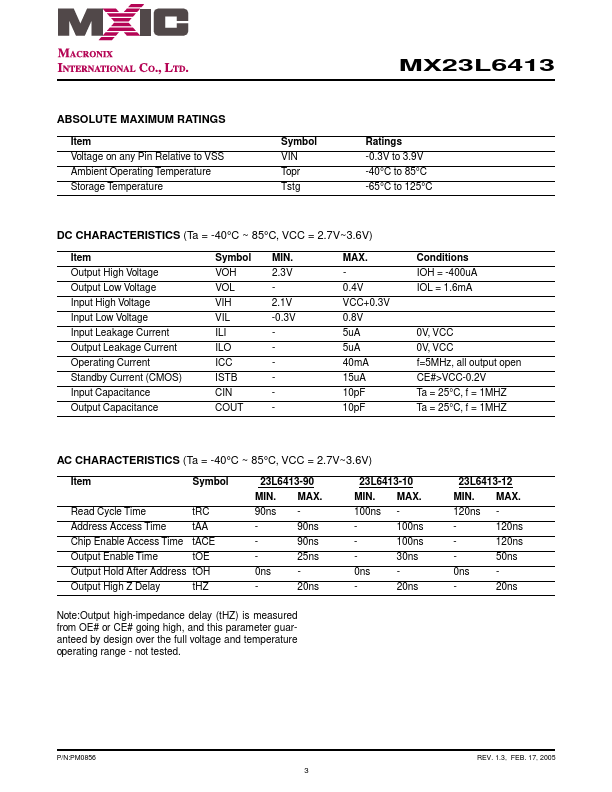

www.DataSheet4U.com MX23L6413 64M-BIT FLASH COMPATIBLE MASK ROM FEATURES • Bit organization - 4M x 16 (byte mode) • Fast access time - Random access:90ns(max.) • Current - Operating:20mA - Standby:15uA • Supply voltage - VCC : 2.7V~3.6V - VCCQ : 2.7V~3.6V • Package - 48 pin TSOP (12mm x 20mm) - 48 ball mini BGA (8.0mm x 9.0mm, ball pitch 0.8mm, ball size 0.4mm) • Temperature - -40 ~ 85° C PIN DESCRIPTION Symbol A0~A20 D0~D15 CE# OE# VCC VSS VCCQ NC Pin Function Address Inputs Data Outputs Chip Enable Input Output Enable Input Power Supply Pin Ground Pin VCC Output Pin No Connection ee DataSh DataSheet4U.
