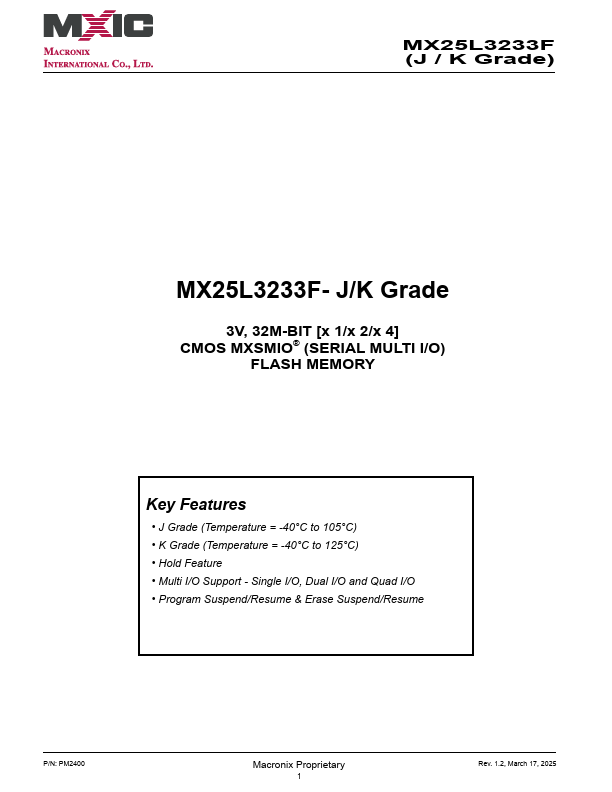

MX25L3233F-J
Features
- J Grade (Temperature = -40°C to 105°C)
- K Grade (Temperature = -40°C to 125°C)
- Hold Feature
- Multi I/O Support
- Single I/O, Dual I/O and Quad I/O
- Program Suspend/Resume & Erase Suspend/Resume
P/N: PM2400
Macronix Proprietary
Rev. 1.2, March 17, 2025
MX25L3233F (J / K Grade)
1. FEATURES
32M-BIT [x 1 / x 2 / x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- 33,554,432 x 1 bit structure or 16,777,216 x 2 bits (two I/O read mode) structure or 8,388,608 x 4 bits (four I/O mode) structure
- 1024 Equal Sectors with 4K bytes each
- Any Sector can be erased individually
- 128 Equal Blocks with 32K bytes each
- Any Block can be erased individually
- 64 Equal Blocks with 64K bytes each
- Any Block can be erased individually
- Power Supply Operation
- 2.65 ~ 3.6 volt for read, erase, and program operations
- Latch-up protected to 100m A from -1V to Vcc +1V
- Conform with AEC-Q100
- Fast read for SPI...
