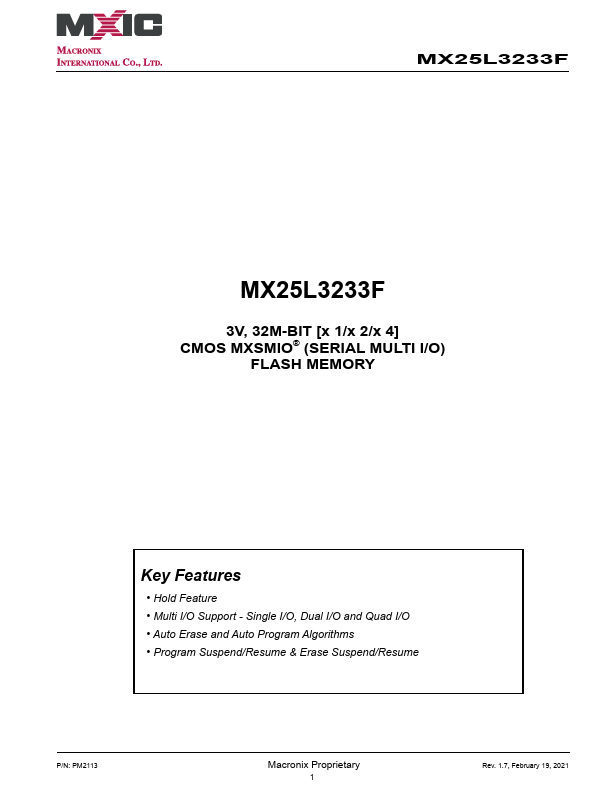

MX25L3233F
MX25L3233F is 32M-BIT CMOS FLASH MEMORY manufactured by Macronix.
3V, 32M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O)
FLASH MEMORY
Key Features
- Hold Feature
- Multi I/O Support
- Single I/O, Dual I/O and Quad I/O
- Auto Erase and Auto Program Algorithms
- Program Suspend/Resume & Erase Suspend/Resume
P/N: PM2113
Macronix Proprietary
Rev. 1.7, February 19, 2021

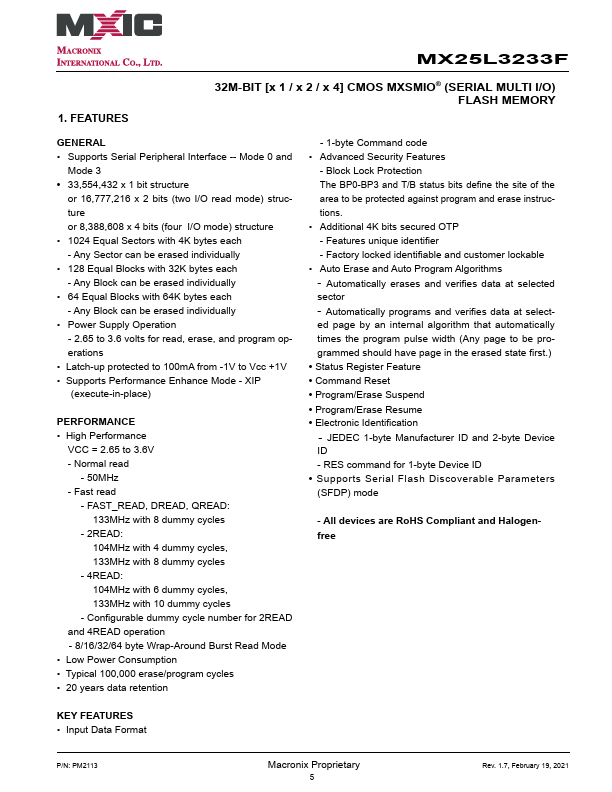

1. Features
32M-BIT [x 1 / x 2 / x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- 33,554,432 x 1 bit structure or 16,777,216 x 2 bits (two I/O read mode) structure or 8,388,608 x 4 bits (four I/O mode) structure
- 1024 Equal Sectors with 4K bytes each
- Any Sector can be erased...
