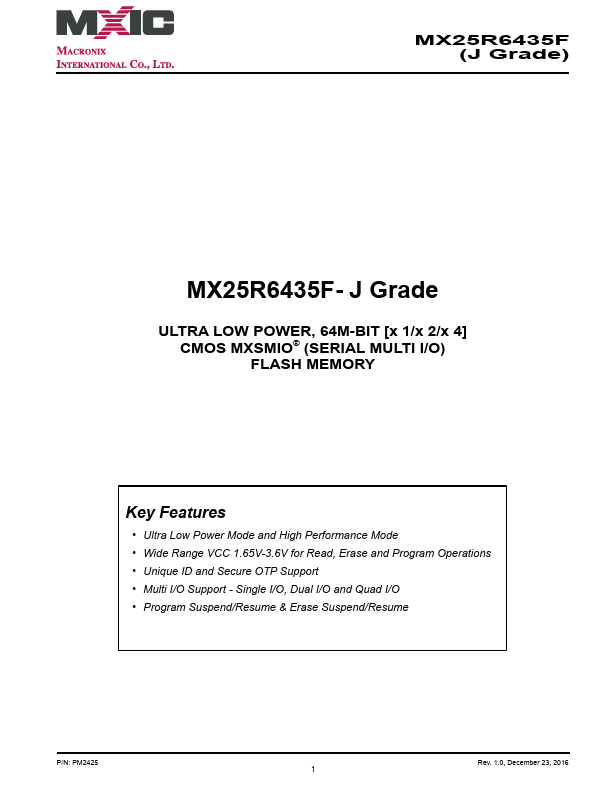

MX25R6435F-J
Features
- Ultra Low Power Mode and High Performance Mode
- Wide Range VCC 1.65V-3.6V for Read, Erase and Program Operations
- Unique ID and Secure OTP Support
- Multi I/O Support
- Single I/O, Dual I/O and Quad I/O
- Program Suspend/Resume & Erase Suspend/Resume
P/N: PM2425
Rev. 1.0, December 23, 2016 1
MX25R6435F (J Grade)

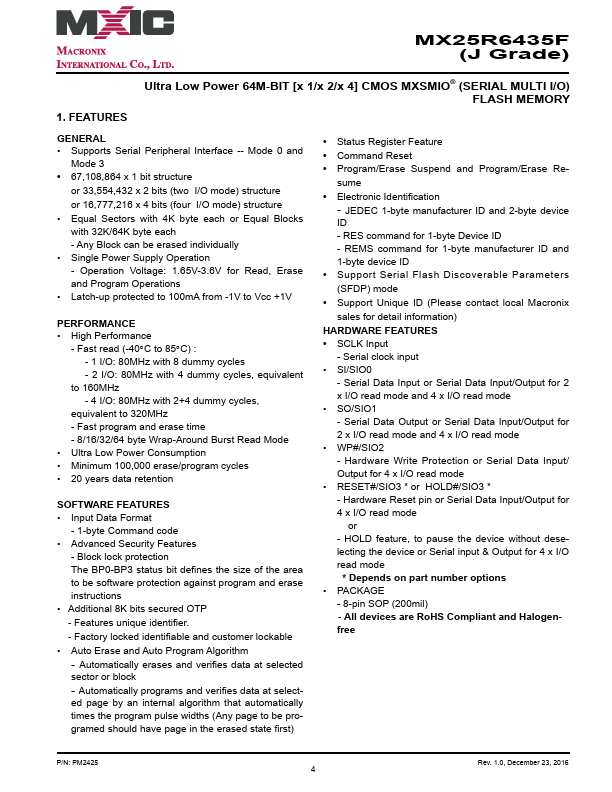

1. FEATURES
Ultra Low Power 64M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- 67,108,864 x 1 bit structure or 33,554,432 x 2 bits (two I/O mode) structure or 16,777,216 x 4 bits (four I/O mode) structure
- Equal Sectors with 4K byte each or Equal Blocks with 32K/64K byte each
- Any Block can be erased individually
- Single Power Supply Operation
- Operation Voltage: 1.65V-3.6V for Read, Erase and Program Operations
- Latch-up protected to 100m A from -1V to Vcc +1V
PERFORMANCE
- High Performance
- Fast read (-40°C to 85°C) :
- 1 I/O: 80MHz with 8 dummy cycles
- 2...
