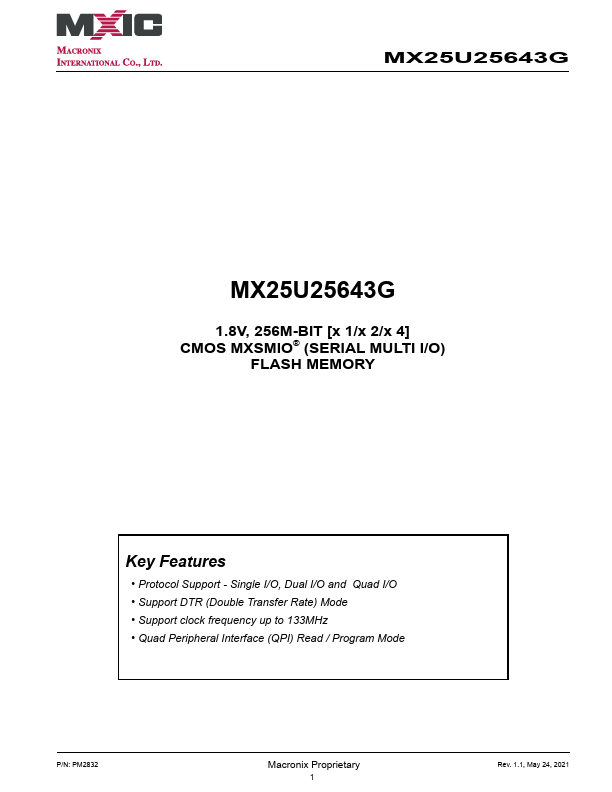

MX25U25643G
Features
- Protocol Support
- Single I/O, Dual I/O and Quad I/O
- Support DTR (Double Transfer Rate) Mode
- Support clock frequency up to 133MHz
- Quad Peripheral Interface (QPI) Read / Program Mode
P/N: PM2832
Macronix Proprietary
Rev. 1.1, May 24, 2021

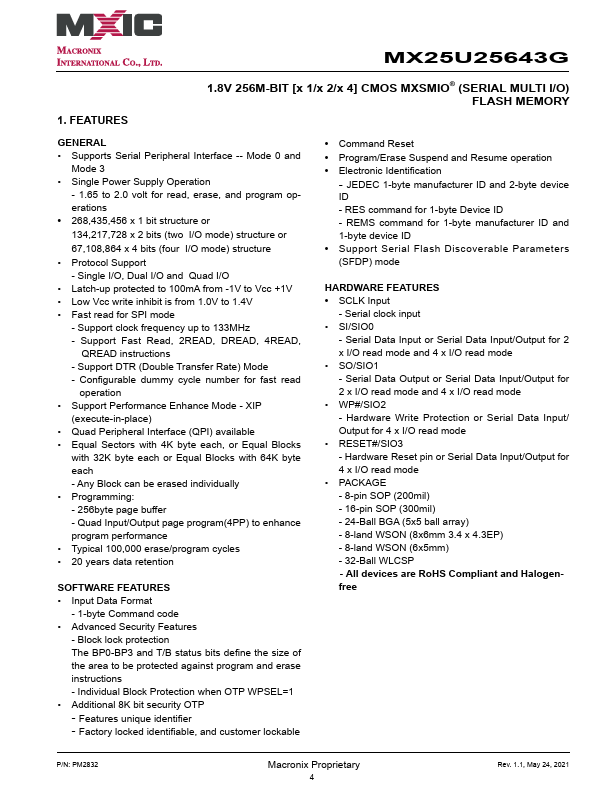

1. FEATURES
1.8V 256M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- Single Power Supply Operation
- 1.65 to 2.0 volt for read, erase, and program operations
- 268,435,456 x 1 bit structure or 134,217,728 x 2 bits (two I/O mode) structure or
67,108,864 x 4 bits (four I/O mode) structure
- Protocol Support
- Single I/O, Dual I/O and Quad I/O
- Latch-up protected to 100m A from -1V to Vcc +1V
- Low Vcc write inhibit is from 1.0V to 1.4V
- Fast read for SPI mode
- Support clock frequency up to 133MHz
- Support Fast Read, 2READ, DREAD, 4READ,
QREAD instructions
- Support DTR (Double Transfer Rate) Mode
- Configurable dummy cycle...
