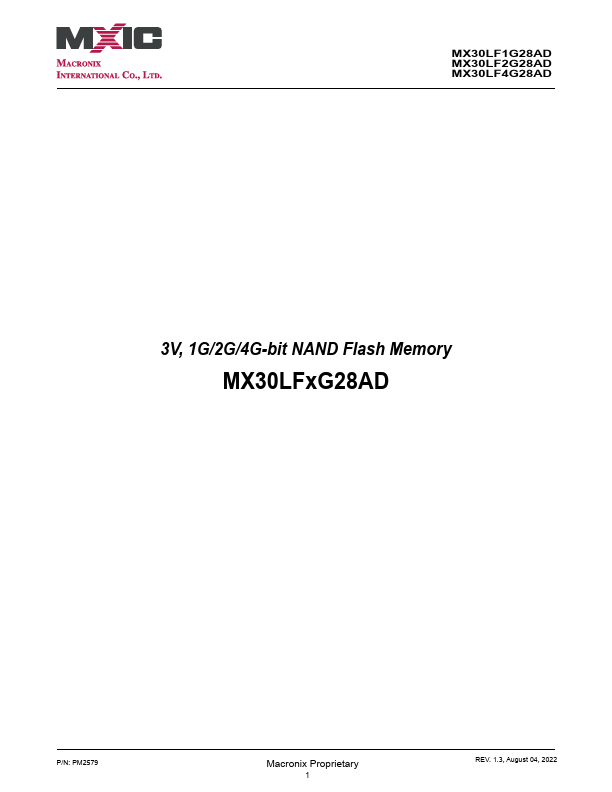

MX30LF4G28AD

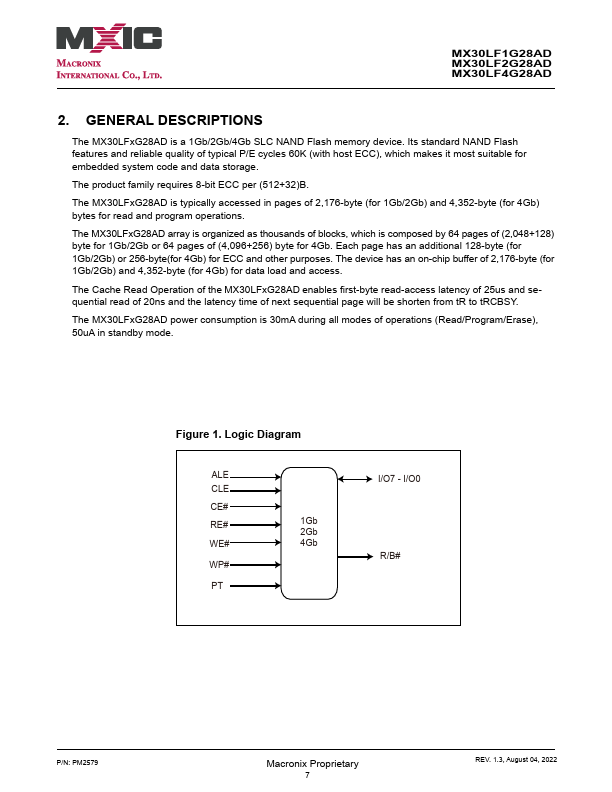

MX30LF4G28AD is 3V 1G-bit NAND Flash Memory manufactured by Macronix.
- Part of the MX30LF1G28AD comparator family.
- Part of the MX30LF1G28AD comparator family.
FEATURES
- 1G/2G/4G-bit SLC NAND Flash
- Bus: x8
- Page size: (2048+128) byte for 1Gb/2Gb (4096+256) byte for 4Gb -Block size: (128K+8K) byte for 1Gb/2Gb (256K+16K) byte for 4Gb ,
- Plane size: 1024-block/plane x1 for 1Gb 1024-block/plane x 2 for 2Gb/4Gb
- ONFI 1.0 pliant
- Multiplexed mand/Address/Data
- User Redundancy
- 128-byte attached to each page for 1Gb/2Gb
- 256-byte attached to each page for 4Gb
- Fast Read Access
- Latency of array to register: 25us
- Sequential read: 20ns
- Cache Read Support
- Page Program Operation
- Page program time: 320us( typ.)
- Cache Program Support
- Block Erase Operation
- Block erase time: 4ms (typ.)
- Single Voltage Opertion:
- VCC: 2.7
- 3.6V
- Low Power Dissipation
- Max. 30m A
Active current (Read/Program/Erase)
- Standby Mode
- 50u A (Max) standby current
MX30LF1G28AD MX30LF2G28AD MX30LF4G28AD
3V, 1Gb/2Gb/4Gb NAND Flash Memory
- Hardware Data Protection: WP# pin
- Block#0-7 are valid with ECC at shipping
- Block Protection
- PT (Protection) pin: active high at power-on, which protects the entire chip. The pin has an internal weak pull down.
- Temporary protection/un-protection function (enabling by PT pin)
- Solid protection (enabling by PT pin)
- Device Status Indicators
- Ready/Busy (R/B#) pin
- Status Register
- Chip Enable Don't Care
- Simplify System...
