MT6343 datasheet by MagnTek.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | MT6343 |
|---|---|
| Datasheet | MT6343 MT6341 Datasheet (PDF) |
| File Size | 1.60 MB |
| Manufacturer | MagnTek |
| Description | Low Power AMR Switch IC |
|
|

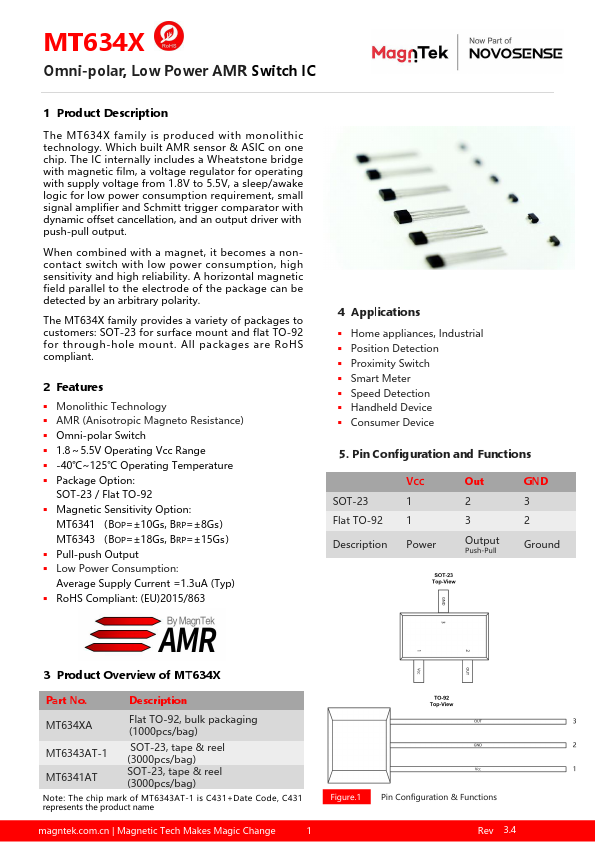

The MT634X family is produced with monolithic technology. Which built AMR sensor & ASIC on one chip. The IC internally includes a Wheatstone bridge with magnetic film, a voltage regulator for operating with supply voltage from 1.8V to 5.5V, a sleep/awake logic for low power consumption requirement, small signal amplifier and Schmitt trigger parator with dynamic offset cancellation, and an output driver with...
