MT8652-3D Datasheet | MagnTek

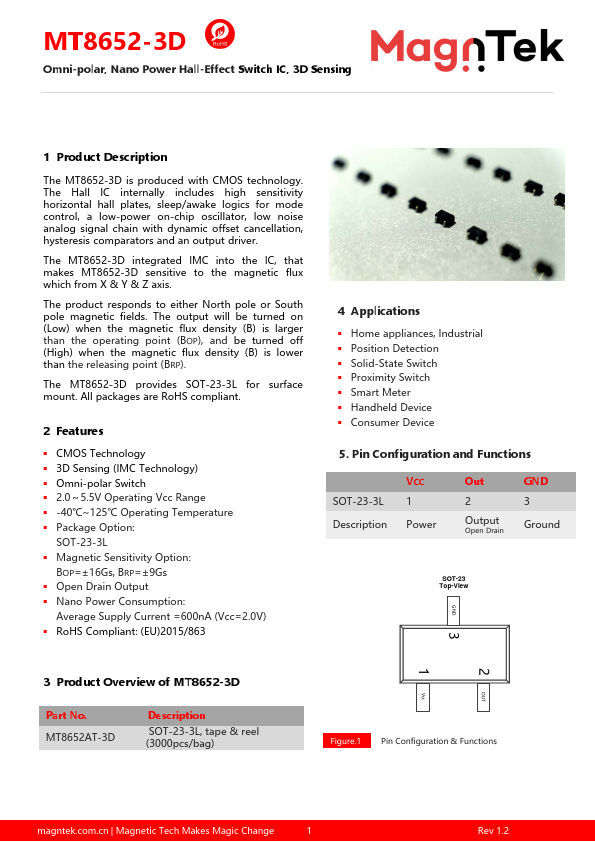

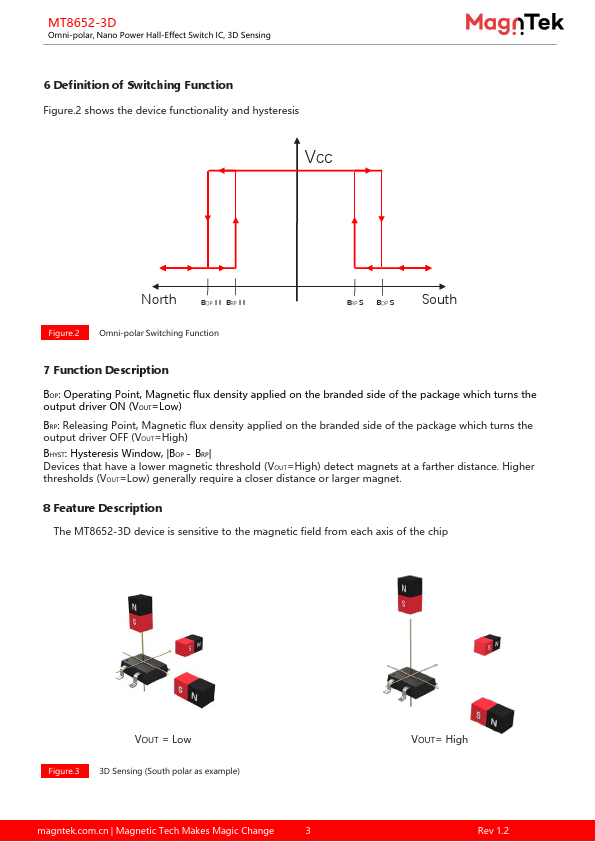

Description The MT8652-3D is produced with CMOS technology. The Hall IC internally includes high sensitivity horizontal hall plates, sleep/awake logics for mode control, a low-power on-chip oscillator, low noise analog signal chain with dynamic offset cancellation, hysteresis parators and an output driver. The MT8652-3D integrated IMC into the IC, that makes MT8652-3D sensitive to the magnetic flux which from X & Y & Z axis. The product responds to either North pole or South pole magnetic fields. The output will be turned on (Low) when the magnetic flux density (B) is larger than the operating point (BOP), and be turned off (High) when the magnetic flux density (B) is lower than the releasing point (BRP). The MT8652-3D provides SOT-23-3L for surface mount. All packages are Ro HS pliant. 2 Features ￭ CMOS Technology ￭ 3D Sensing (IMC Technology) ￭ Omni-polar Switch ￭ 2.0～5.5V Operating Vcc Range ￭ -40℃~125℃ Operating Temperature ￭ Package Option: SOT-23-3L ￭ Magnetic Sensitivity Option: BOP=±16Gs, BRP=±9Gs ￭ Open Drain Output ￭ Nano Power Consumption: Average Supply Current =600n A (Vcc=2.0V) ￭ Ro HS pliant: (EU)2015/863 4 Applications ￭ Home appliances, Industrial ￭ Position Detection ￭ Solid-State Switch ￭ Proximity Switch ￭ Smart Meter ￭ Handheld Device ￭ Consumer Device 5. Pin Configuration and Functions SOT-23-3L Description VCC 1 Power Out Output Open Drain GND 3 Ground SOT-23 Top-View 按钮 3 Product Overview of MT8652-3D Part No. MT8652AT-3D Description SOT-23-3L, tape & reel (3000pcs/bag) Figure.1 Pin Configuration & Functions Vcc OUT magntek..cn | Magnetic Tech Makes Magic Change Rev 1.2 Omni-polar, Nano Power Hall-Effect Switch IC, 3D Sensing Table of Contents 1 Product Description …………...….……………….……...…………………………………….…….………1 2 Features ……………………………….……..……………………………………………………………….…….1 3 Product Overview of MT8652-3D ..……………………………………………………………………1 4 Applications……………………………………………………………………………………………………….1 5 Pin Configuration...
