MT9105 Datasheet | MagnTek

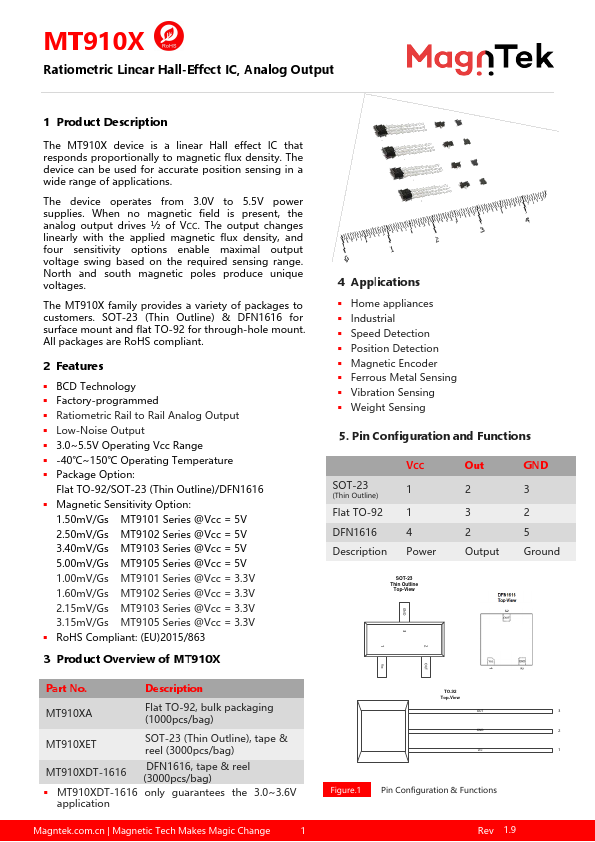

Description The MT910X device is a linear Hall effect IC that responds proportionally to magnetic flux density. The device can be used for accurate position sensing in a wide range of applications. The device operates from 3.0V to 5.5V power supplies. When no magnetic field is present, the analog output drives ½ of VCC. The output changes linearly with the applied magnetic flux density, and four sensitivity options enable maximal output voltage swing based on the required sensing range. North and south magnetic poles produce unique voltages. The MT910X family provides a variety of packages to customers. SOT-23 (Thin Outline) & DFN1616 for surface mount and flat TO-92 for through-hole mount. All packages are Ro HS pliant. 2 Features ￭ BCD Technology ￭ Factory-programmed ￭ Ratiometric Rail to Rail Analog Output ￭ Low-Noise Output ￭ 3.0~5.5V Operating Vcc Range ￭ -40℃~150℃ Operating Temperature ￭ Package Option: Flat TO-92/SOT-23 (Thin Outline)/DFN1616 ￭ Magnetic Sensitivity Option: 1.50m V/Gs MT9101 Series @Vcc = 5V 2.50m V/Gs MT9102 Series @Vcc = 5V 3.40m V/Gs MT9103 Series @Vcc = 5V 5.00m V/Gs MT9105 Series @Vcc = 5V 1.00m V/Gs MT9101 Series @Vcc = 3.3V 1.60m V/Gs MT9102 Series @Vcc = 3.3V 2.15m V/Gs MT9103 Series @Vcc = 3.3V 3.15m V/Gs MT9105 Series @Vcc = 3.3V ￭ Ro HS pliant: (EU)2015/863 3 Product Overview of MT910X Part No. Description MT910XA Flat TO-92, bulk packaging (1000pcs/bag) MT910XET SOT-23 (Thin Outline), tape & reel (3000pcs/bag) MT910XDT-1616 DFN1616, tape & reel (3000pcs/bag) ￭ MT910XDT-1616 only guarantees the 3.0~3.6V application Magntek..cn | Magnetic Tech Makes Magic Change 4 Applications ￭ Home appliances ￭ Industrial ￭ Speed Detection ￭ Position Detection ￭ Magnetic Encoder ￭ Ferrous Metal Sensing ￭ Vibration Sensing ￭ Weight Sensing 5. Pin Configuration and Functions SOT-23 (Thin Outline) Flat TO-92 DFN1616 Description VCC 1 1 4 Power Out 2 3 2 Output GND 3 2 5 Ground SOT-23 Thin Outline Top-View GND 3...
