MAX834 - Micropower / Latching Voltage Monitors

Description

The MAX834/MAX835 micropower voltage monitors contain a 1.204V precision bandgap reference, comparator, and latched output in a 5-pin SOT23 package.

Using the latched output prevents deep discharge of batteries.

Features

  • Prevent Deep Discharge of Batteries.
  • Precision ±1.25% Voltage Threshold.
  • Latched Output (Once Low, Stays Low Until Cleared).
  • SOT23-5 Package.
  • Low Cost.
  • +2.5V to +11V Wide Operating Voltage Range.
  • < 2µA Typical Supply Current.
  • Open-Drain Output (MAX834)/Push-Pull Output (MAX835) Precision Battery Monitors Load Switching Battery-Powered Systems Threshold Detectors.

📥 Download Datasheet

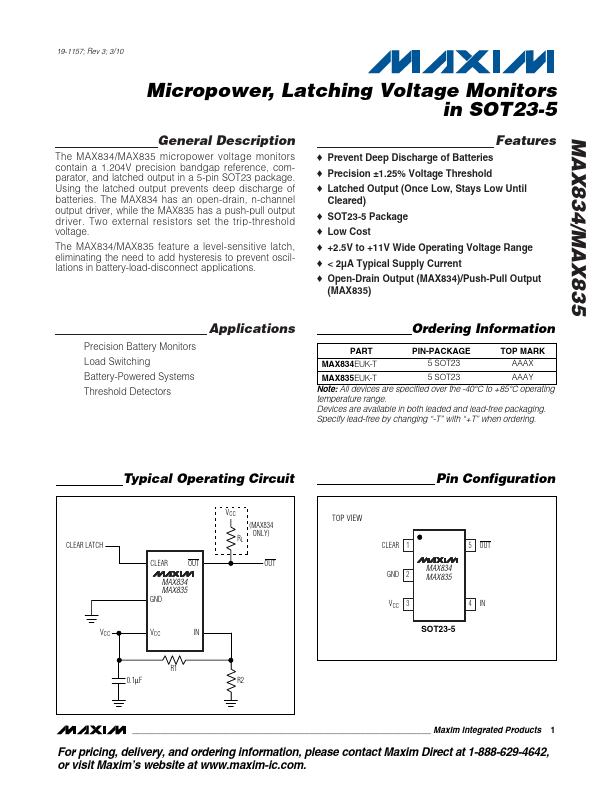

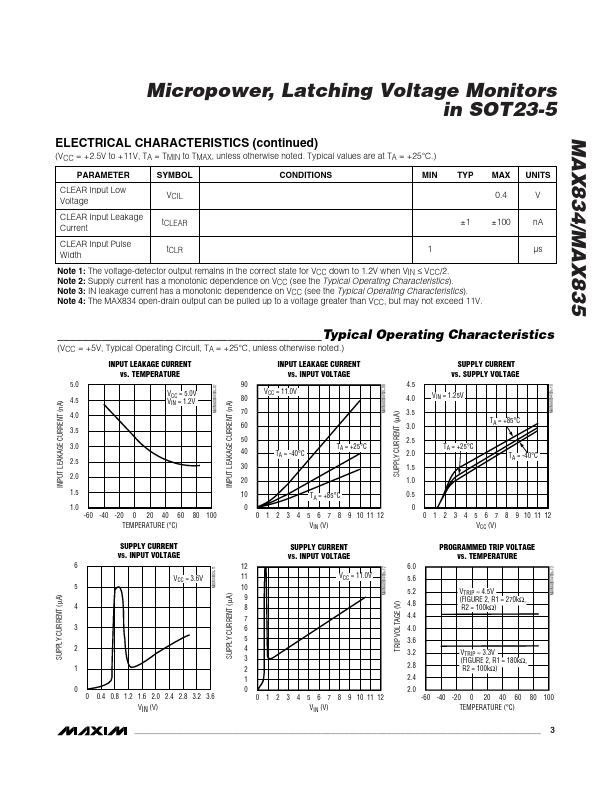

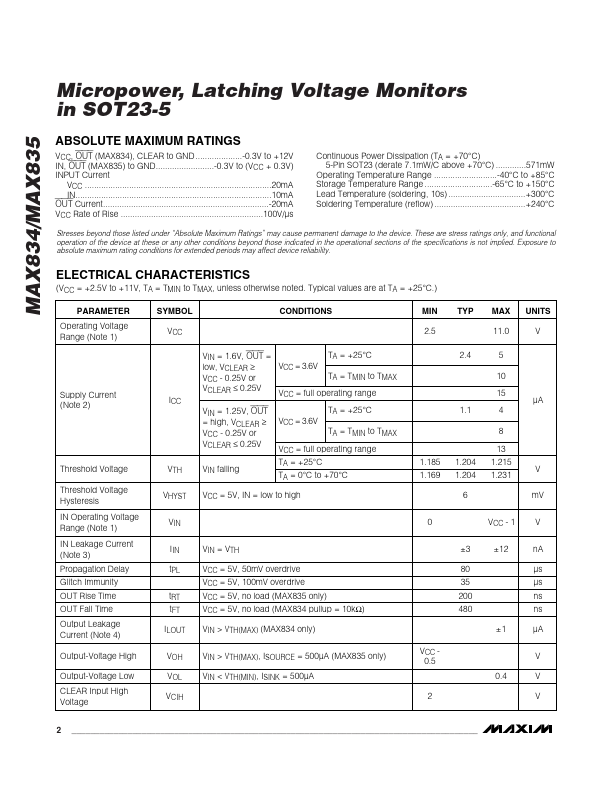

Datasheet preview – MAX834
