MAX835 - Micropower / Latching Voltage Monitors

Description

The MAX834/MAX835 micropower voltage monitors contain a 1.204V precision bandgap reference, comparator, and latched output in a 5-pin SOT23 package.

Using the latched output prevents deep discharge of batteries.

Features

  • Prevent Deep Discharge of Batteries.
  • Precision ±1.25% Voltage Threshold.
  • Latched Output (Once Low, Stays Low Until Cleared).
  • SOT23-5 Package.
  • Low Cost.
  • +2.5V to +11V Wide Operating Voltage Range.
  • < 2µA Typical Supply Current.
  • Open-Drain Output (MAX834)/Push-Pull Output (MAX835) Precision Battery Monitors Load Switching Battery-Powered Systems Threshold Detectors.

📥 Download Datasheet

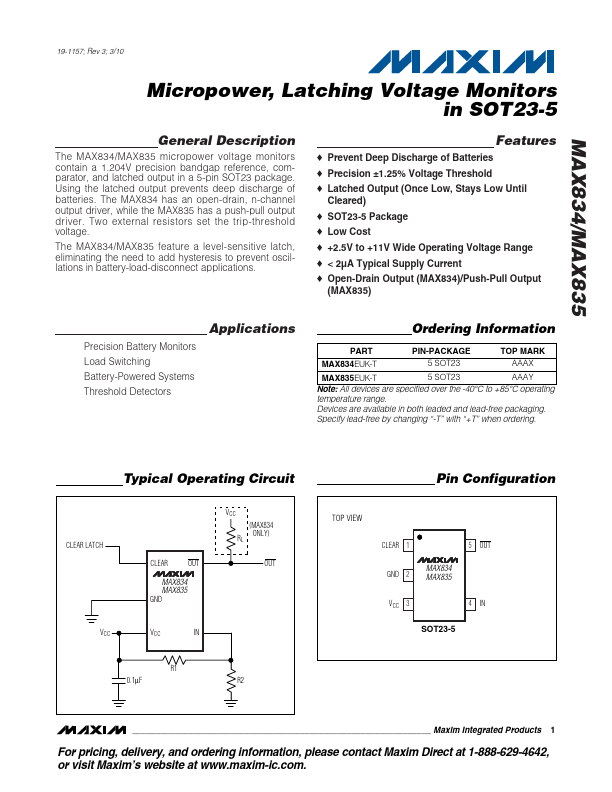

Datasheet preview – MAX835

Datasheet Details

Part number MAX835
Manufacturer Maxim Integrated
File Size 153.26 KB
Description Micropower / Latching Voltage Monitors
Datasheet download datasheet MAX835 Datasheet

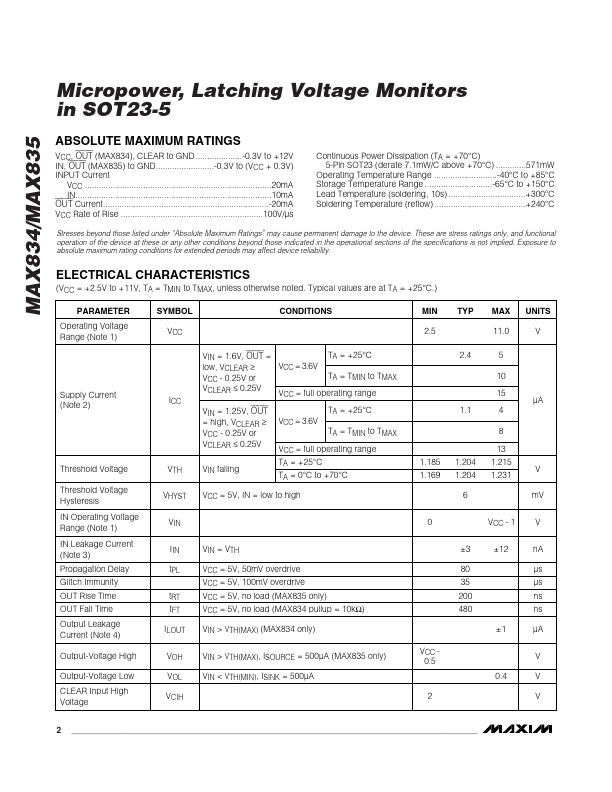

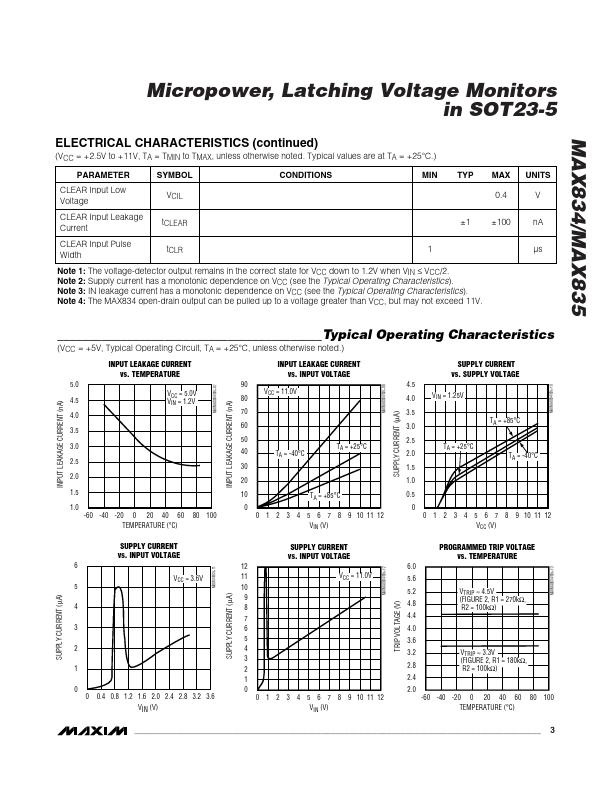

Additional preview pages of the MAX835 datasheet.

📁 Similar Datasheet

  • MAX831 - Switch-Mode DC-DC Regulators (Maxim Integrated)
  • MAX832 - Switch-Mode DC-DC Regulators (Maxim Integrated)
  • MAX800L - Microprocessor Supervisory Circuits (Maxim Integrated)
  • MAX800M - Microprocessor Supervisory Circuits (Maxim Integrated)
  • MAX801L - 8-Pin uP Supervisory Circuits (Maxim Integrated Products)
  • MAX801M - 8-Pin uP Supervisory Circuits (Maxim Integrated Products)
  • MAX801N - 8-Pin uP Supervisory Circuits (Maxim Integrated Products)
  • MAX802 - 3.0V/3.3V Microprocessor Supervisory Circuits (Maxim Integrated)
  • MAX802L - Microprocessor Supervisory Circuits (Maxim Integrated Products)
  • MAX802M - Microprocessor Supervisory Circuits (Maxim Integrated Products)
Other Datasheets by Maxim
  • MAX830 - Switch-Mode DC-DC Regulators
  • MAX833 - 5V/3.3V/3V/Adjustable-Output / 1A / Step-Down / PWM / Switch-Mode DC-DC Regulators
  • MAX834 - Micropower / Latching Voltage Monitors
  • MAX836 - 4-Pin Micropower Voltage Monitors
  • MAX837 - 4-Pin Micropower Voltage Monitors
  • MAX809J - 3-Pin Microprocessor Reset Circuits
  • MAX809L - 3-Pin Microprocessor Reset Circuits
  • MAX809M - 3-Pin Microprocessor Reset Circuits

Full PDF Text Transcription

Click to expand full text
MAX834/MAX835 19-1157; Rev 3; 3/10 Micropower, Latching Voltage Monitors in SOT23-5 General Description The MAX834/MAX835 micropower voltage monitors contain a 1.204V precision bandgap reference, comparator, and latched output in a 5-pin SOT23 package. Using the latched output prevents deep discharge of batteries. The MAX834 has an open-drain, n-channel output driver, while the MAX835 has a push-pull output driver. Two external resistors set the trip-threshold voltage. The MAX834/MAX835 feature a level-sensitive latch, eliminating the need to add hysteresis to prevent oscillations in battery-load-disconnect applications. Features ♦ Prevent Deep Discharge of Batteries ♦ Precision ±1.
