BC856B - PNP Small Signal Transistor

Download the BC856B datasheet PDF (BC856A included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for pnp small signal transistor.

Features

  • For Switching and AF Amplifier.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BC856A-MicroCommercialComponents.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • BC856B - PNP Transistor (Multicomp)
  • BC856B - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
  • BC856B - PNP Silicon AF Transistor (Infineon)
  • BC856B - PNP Silicon Epitaxial Transistors (Kingtronics)
  • BC856B - PNP Transistor (GME)
  • BC856B - PNP Silicon AF Transistors (Siemens Semiconductor Group)
  • BC856B - SMD General Purpose PNP Transistors (Diotec Semiconductor)
  • BC856B - PNP SMALL SIGNAL TRANSISTOR (DIODES)
  • BC856B - PNP Transistor (nexperia)
  • BC856B - SURFACE MOUNT PNP SILICON TRANSISTOR (Central Semiconductor)
Other Datasheets by Micro Commercial Components
  • BC856A - PNP Small Signal Transistor
  • BC858A - PNP Small Signal Transistor
  • BC858B - PNP Small Signal Transistor
  • BC858C - PNP Small Signal Transistor
  • BC817-16 - NPN Small Signal Transistor
  • BC817-25 - NPN Small Signal Transistor
  • BC817-40 - NPN Small Signal Transistor

Full PDF Text Transcription

Click to expand full text

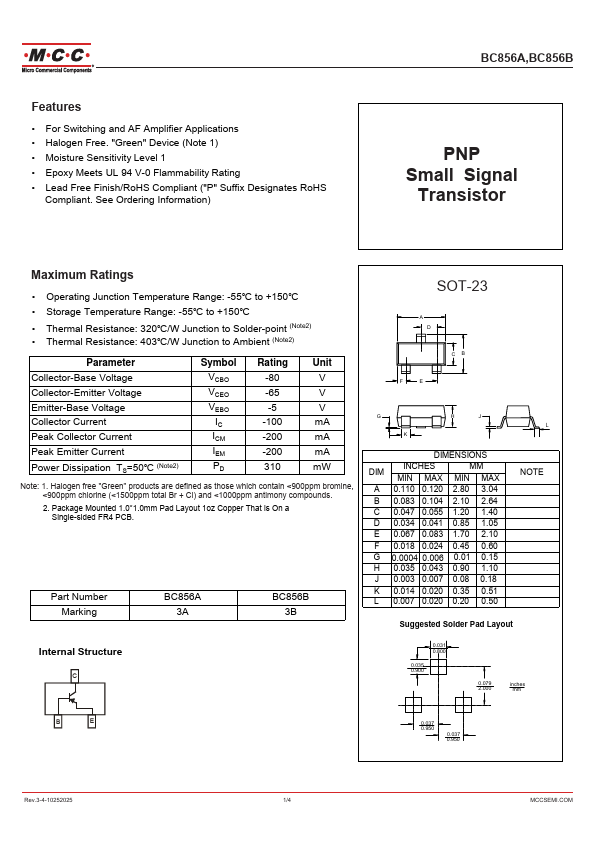

Features • For Switching and AF Amplifier Applications • Halogen Free. "Green" Device (Note 1) • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant.
