MMS8050 - NPN Silicon Plastic-Encapsulate Transistor

Key Features

  • Halogen Free. “Green” Device (Note 1).
  • Moisture Sensitivity Level 1.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C Unless Otherwise Specified.
  • Operating Junction Temperature Range: -55℃ to +150℃.
  • Storage Temperature Range: -55℃ to +150℃.
  • Thermal Resistance: 417℃/W Junction to Ambient NPN Silicon Plastic-Encapsulate T.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMS-122-01 (MMS-xxxx) 2mm Socket Strips Samtec
MMS-122-01-L-DH (MMS-xxxx) 2mm Socket Strips Samtec
MMS-122-02 (MMS-xxxx) 2mm Socket Strips Samtec
MMS-122-02-F-SH (MMS-xxxx) 2mm Socket Strips Samtec
MMS-122-04 (MMS-xxxx) 2mm Socket Strips Samtec

Other Datasheets by Micro Commercial Components

Part Number Description
MMS8550 SOT-23 Plastic-encapsulate Bipolar Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

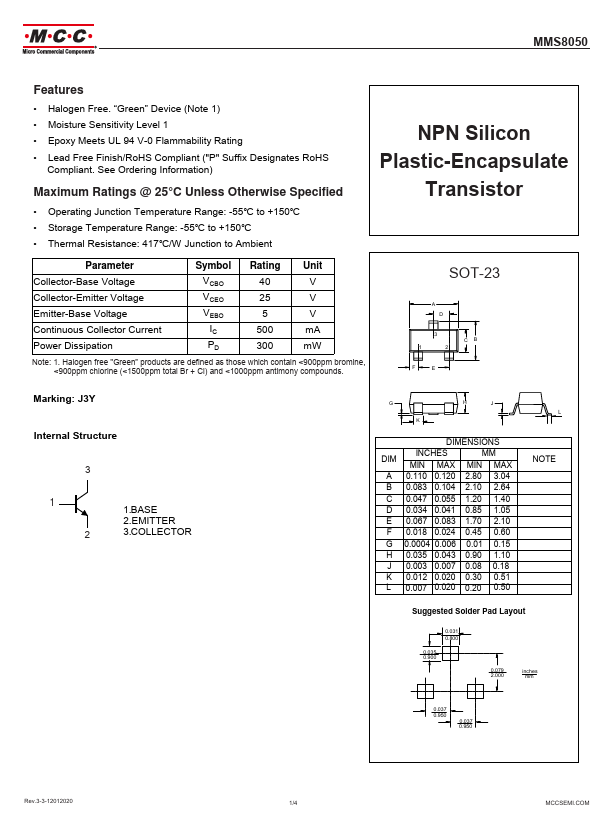

MMS8050 Features • Halogen Free. “Green” Device (Note 1) • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C Unless Otherwise Specified • Operating Junction Temperature Range: -55℃ to +150℃ • Storage Temperature Range: -55℃ to +150℃ • Thermal Resistance: 417℃/W Junction to Ambient NPN Silicon Plastic-Encapsulate Transistor Parameter Symbol Rating Unit Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation VCBO VCEO VEBO IC PD 40 V 25 V 5 V 500 mA 300 mW Note: 1.
