MD103D - Miniature SIP DC/DC Converters

This page provides the datasheet information for the MD103D, a member of the MD103S Miniature SIP DC/DC Converters family.

Features

  • 1W Output Power.
  • 1 kV to 6kV Isolation.
  • 80 Standard Models.
  • Single & Dual Outputs Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units 3.3 VDC Input 2.97 3.3 3.63 5 VDC Input 4.5 5.0 5.5 Input Voltage Range 12 VDC Input 10.8 12.0 13.2 VDC 15 VDC Input 13.5 15.0 16.5.
  • Miniature SIP Case.

📥 Download Datasheet

Datasheet preview – MD103D

Datasheet Details

Part number MD103D
Manufacturer MicroPower Direct
File Size 2.76 MB
Description Miniature SIP DC/DC Converters
Datasheet download datasheet MD103D Datasheet

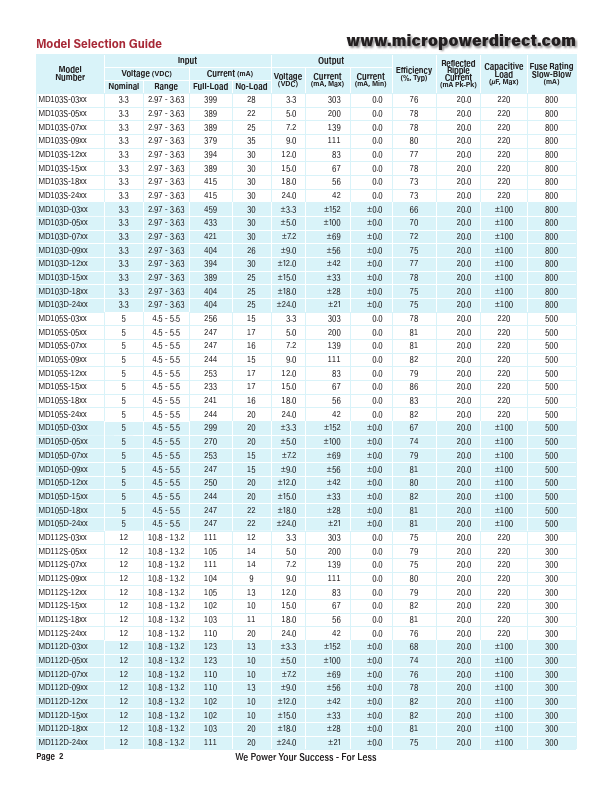

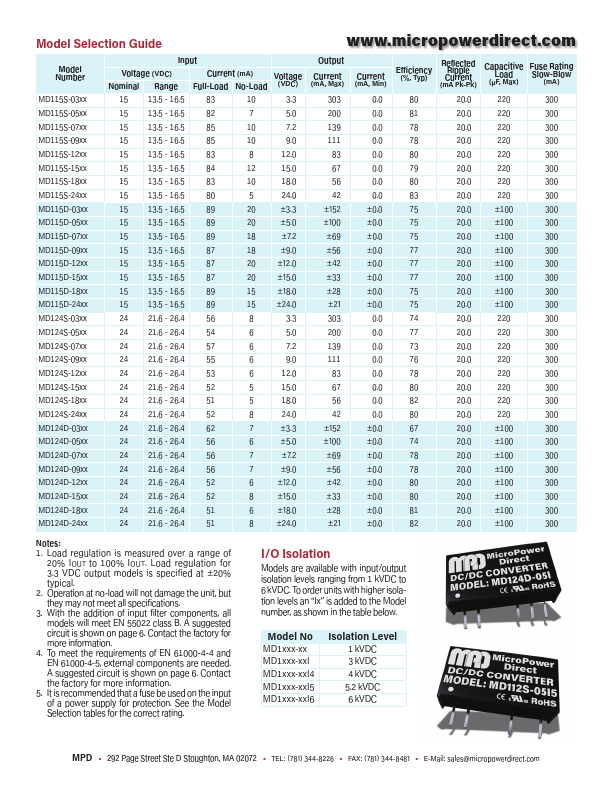

Additional preview pages of the MD103D datasheet.

📁 Similar Datasheet

  • MD10 - SURFACE MOUNT BRIDGE RECTIFIER (Gulf Semiconductor)
  • MD100 - Diode Modules (PST)
  • MD100 - Diode Modules (LGE)
  • MD1000 - PowerVault Support Matrix (Dell)
  • MD1000 - Diode Modules (TECHSEM)
  • MD100S08M2 - THREE PHASE RECTIFIER BRIDGE (MCC)
  • MD100S12M2 - THREE PHASE RECTIFIER BRIDGE (MCC)
  • MD100S16M2 - THREE PHASE RECTIFIER BRIDGE (MCC)
  • MD100S18M2 - THREE PHASE RECTIFIER BRIDGE (MCC)
  • MD101IA01D-30E - TFT LCD (B&H)
Other Datasheets by MicroPower Direct
  • MD103S - Miniature SIP DC/DC Converters
  • MD105D - Miniature SIP DC/DC Converters
  • MD105S - Miniature SIP DC/DC Converters
  • MD112D - Miniature SIP DC/DC Converters
  • MD112S - Miniature SIP DC/DC Converters
  • MD115D - Miniature SIP DC/DC Converters
  • MD115S - Miniature SIP DC/DC Converters
  • MD124D - Miniature SIP DC/DC Converters

Full PDF Text Transcription

Click to expand full text

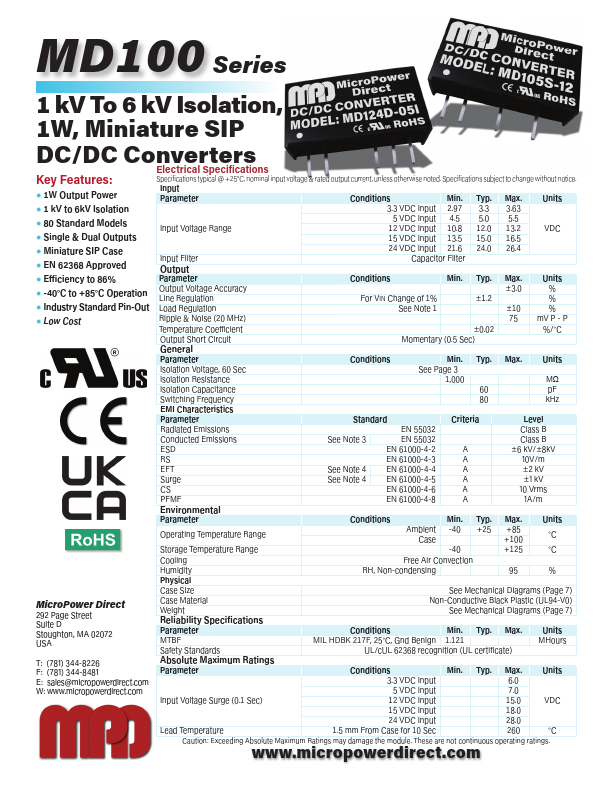

MD100 Series 1 kV To 6 kV Isolation, 1W, Miniature SIP DC/DC Converters Key Features: ● 1W Output Power ● 1 kV to 6kV Isolation ● 80 Standard Models ● Single & Dual Outputs Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units 3.3 VDC Input 2.97 3.3 3.63 5 VDC Input 4.5 5.0 5.5 Input Voltage Range 12 VDC Input 10.8 12.0 13.2 VDC 15 VDC Input 13.5 15.0 16.5 ● Miniature SIP Case ● EN 62368 Approved ● Efficiency to 86% Input Filter Output Parameter 24 VDC Input 21.6 24.0 26.4 Capacitor Filter Conditions Min. Typ. Max.
