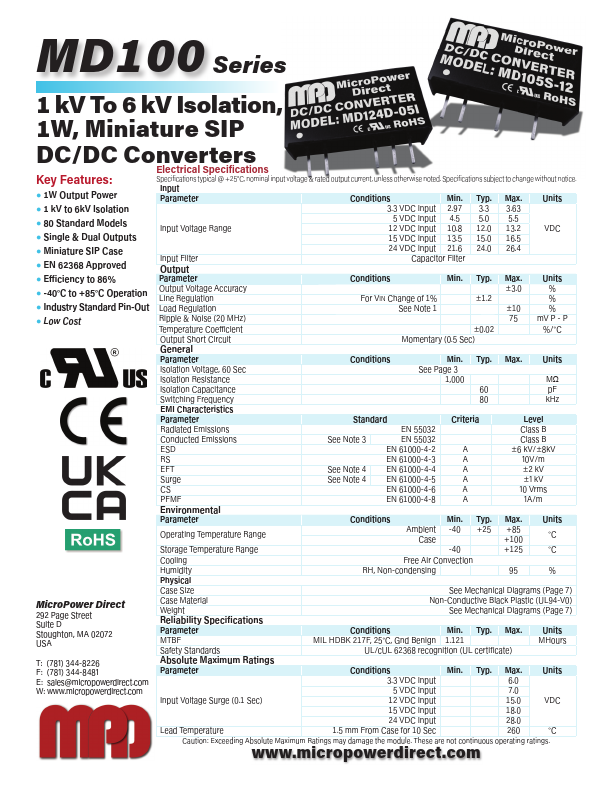

MD103S
Features
:
- 1W Output Power
- 1 k V to 6k V Isolation
- 80 Standard Models
- Single & Dual Outputs
Electrical Specifications
Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice.
Input
Parameter
Conditions
Min. Typ. Max. Units
3.3 VDC Input 2.97 3.3 3.63
5 VDC Input 4.5 5.0 5.5
Input Voltage Range
12 VDC Input 10.8 12.0 13.2
15 VDC Input 13.5 15.0 16.5
- Miniature SIP Case
- EN 62368 Approved
- Efficiency to 86%
Input Filter Output Parameter
24 VDC Input 21.6 24.0 26.4 Capacitor Filter
Conditions
Min. Typ. Max.
Units
- -40°C to +85°C Operation Output Voltage Accuracy Line Regulation
- Industry Standard Pin-Out Load Regulation
For VIN Change of 1% See Note 1
±3.0
%
±1.2
%
±10
%
- Low Cost
Ripple & Noise (20 MHz) Temperature Coefficient
75 ±0.02 m V P
- P %/°C
Output Short...
