Microchip Technology AT24CM02
I2C-Compatible Serial EEPROM
| Part No. | AT24CM02 |
|---|---|
| Datasheet | AT24CM02 Download |
| Manufacturer |  Microchip Technology |
| Description | I2C-Compatible Serial EEPROM |
| Buy | Stock & Price |

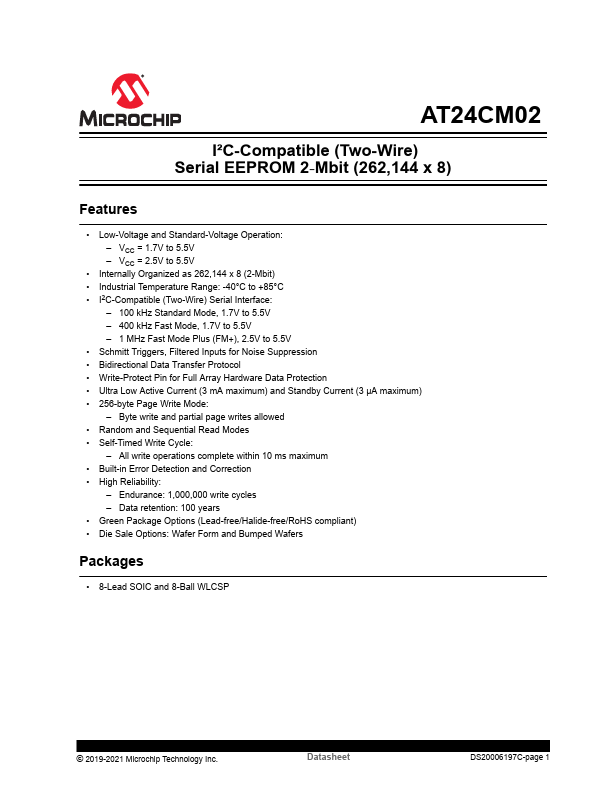

FEATURES
● Low-Voltage and Standard-Voltage Operation: – VCC = 1.7V to 5.5V – VCC = 2.5V to 5.5V● Internally Organized as 262,144 x 8 (2‑Mbit)
● Industrial Temperature Range: -40°C to +85°C
● I2C-Compatible (Two-Wire) Serial Interface: – 100 kHz Standard Mode, 1.7V to 5.5V – 400 kHz Fast Mode, 1.7V to 5.5V – 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V
● Schmitt Triggers, Filtered Inputs for Noise Suppression
● Bidirectional Data Transfer Protocol
● Write-Protect Pin for Full Array Hardware Data Protection
● Ultra Low Active Current (3 mA maximum) and Standby Current (3 µA maximum)
● 256-byte Page Write Mode: – Byte write and partial page writes allowed
● Random and Sequential Read Modes
● Self-Timed Write Cycle: – All write operations complete within 10 ms maximum
● Built-in Error Detection and Correction
● High Reliability: – Endurance: 1,000,000 write cycles – Data retention: 100 years
● Green Package Options (Lead-free/Halide-free/RoHS compliant)
● Die Sale Options: Wafer Form and Bumped Wafers Packages

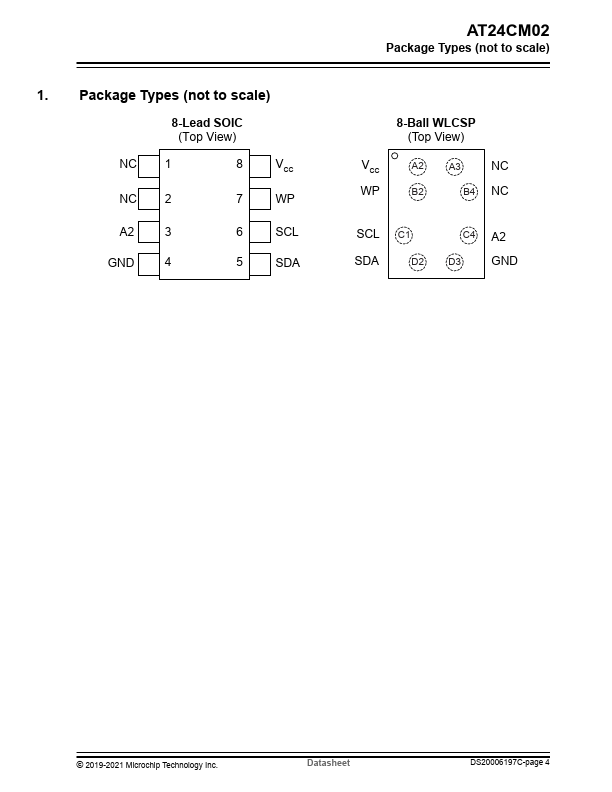

● 8-Lead SOIC and 8-Ball WLCSP © 2019-2021 Microchip Technology Inc.
