ATmega328PB - Microcontroller

Product Overview

Microchip

📥 Download Datasheet

ATmega328PB Microcontroller by Microchip - Datasheet Preview — Datasheet preview – ATmega328PB

Datasheet Details

Part number	ATmega328PB
Manufacturer	Microchip
File Size	3.90 MB
Description	Microcontroller
Datasheet	ATmega328PB Datasheet

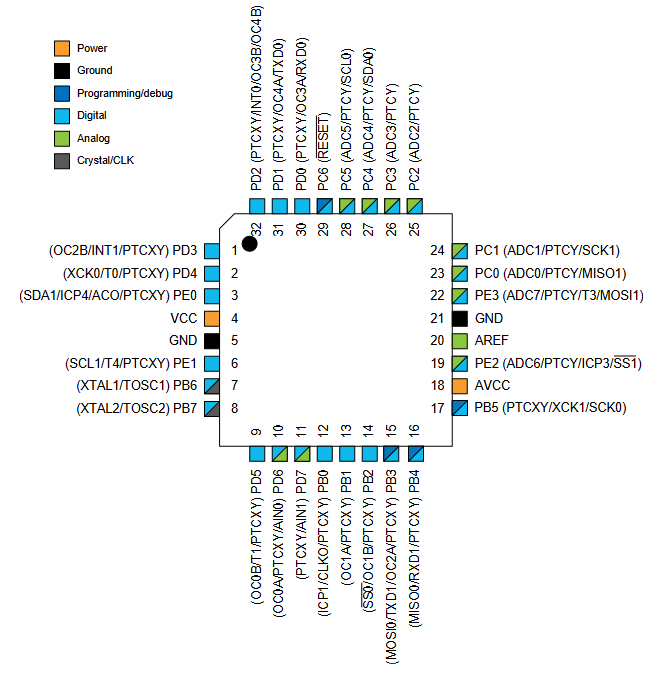

Additional preview pages of the ATmega328PB datasheet.

Product details

Description

2.

3.

4.

Arithmetic Logic Unit 23 9.3.

Status Register23 9.4.

Features

High Performance, Low-Power AVR® 8-bit Microcontroller Family.
Advanced RISC Architecture.
131 Powerful Instructions.
Most Single Clock Cycle Execution.
32 x 8 General Purpose Working Registers.
Fully Static Operation.
Up to 20 MIPS Throughput at 20 MHz.
On-Chip 2-Cycle Multiplier.
High Endurance Nonvolatile Memory Segments.
32 KB of In-System Self-Programmable Flash program memory.
1 KB EEPROM.
2.
