MCP60711U Description

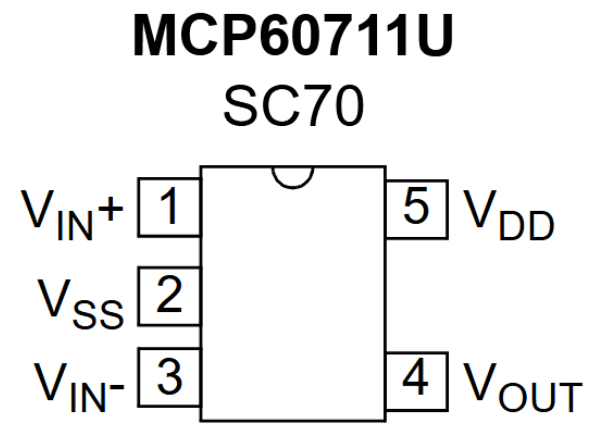

The MCP60711/1U/3 op amps operate on a power supply voltage between 2.2V and 5.5V, and over the ETemp temperature range (-40°C to +125°C). The input offset voltage is trimmed at 25°C and VDD = 3.5V. Single op amps are offered in 5L SC70, 5L SOT-23, and 6L SOT-23 (with SHDN pin) packages.
MCP60711U Key Features
- Gain Bandwidth Product: 10 MHz (typical)
- Slew Rate: 15 V/µs (typical at VDD = 5.5V)
- THD: -115 dBc (typical) at 1 kHz and 2 VP-P
- Input Offset Voltage: ±105 µV (maximum
- Rail-to-Rail: I/O
- Power Supply: 2.2V to 5.5V
- Single or Dual (Split) Supplies
- Quiescent Current: 720 µA/chan (typical)
- Shutdown pins for some packages
- Enhanced EMI Protection
