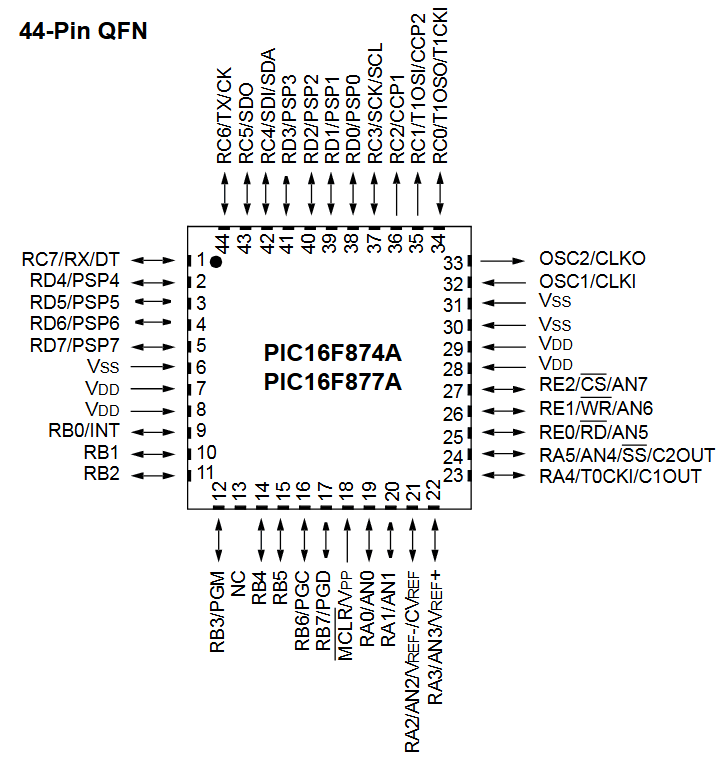

PIC16F874A Overview
PIC16F87XA 28/40/44-Pin Enhanced Flash Microcontrollers Devices Included in this Data Sheet: PIC16F873A PIC16F874A PIC16F876A PIC16F877A High-Performance RISC CPU: Only 35 single-word instructions to learn All single-cycle instructions except for program branches, which are two-cycle Operating speed:.
PIC16F874A Key Features
- Timer0: 8-bit timer/counter with 8-bit prescaler
- Timer1: 16-bit timer/counter with prescaler
- Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
- Two Capture, pare, PWM modules
- Capture is 16-bit, max. resolution is 12.5 ns
- pare is 16-bit, max. resolution is 200 ns
- PWM max. resolution is 10-bit
- Synchronous Serial Port (SSP) with SPI (Master mode) and I2C™(Master/Slave)
- Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI) with 9-bit address detection
- Parallel Slave Port (PSP)
