TC7136A - Low Power 3-1/2 Digit Analog-to-Digital Converter

This page provides the datasheet information for the TC7136A, a member of the TC7136 Low Power 3-1/2 Digit Analog-to-Digital Converter family.

Datasheet Summary

Description

The TC7136 and TC7136A are low power, 3-1/2 digit with liquid crystal display (LCD) drivers and analog-todigital converters.

These devices incorporate an "integrator output zero" phase, which enables over range recovery.

Features

  • Fast Over Range Recovery, Ensured First Reading Accuracy.
  • Low Temperature Drift Internal Reference - TC7136: 70ppm/°C (Typ. ) - TC7136A: 35ppm/°C (Typ. ).
  • Zero Reading with Zero Input.
  • Low Noise: 15μVP-P.
  • High Resolution: 0.05%.
  • Low Input Leakage Current: 1pA (Typ. )/10pA (Max. ).
  • Precision Null Detectors with True Polarity at Zero.
  • High-Impedance Differential Input.
  • Convenient 9V Battery Operation with Low Power Dissi.

📥 Download Datasheet

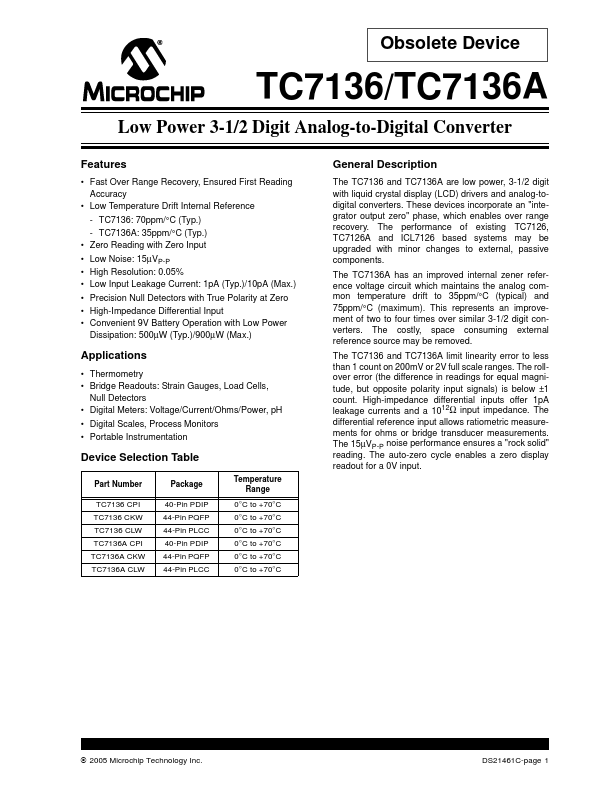

Datasheet preview – TC7136A

Datasheet Details

Part number TC7136A
Manufacturer Microchip
File Size 288.99 KB
Description Low Power 3-1/2 Digit Analog-to-Digital Converter
Datasheet download datasheet TC7136A Datasheet

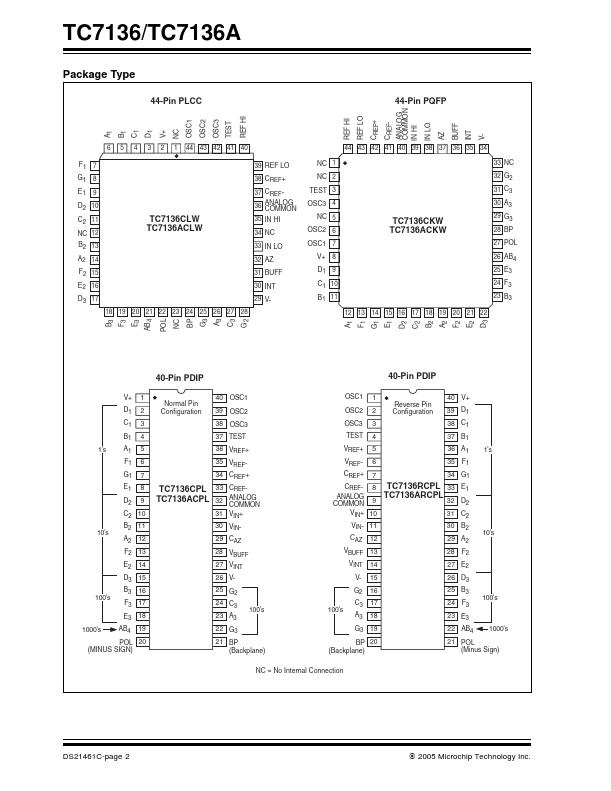

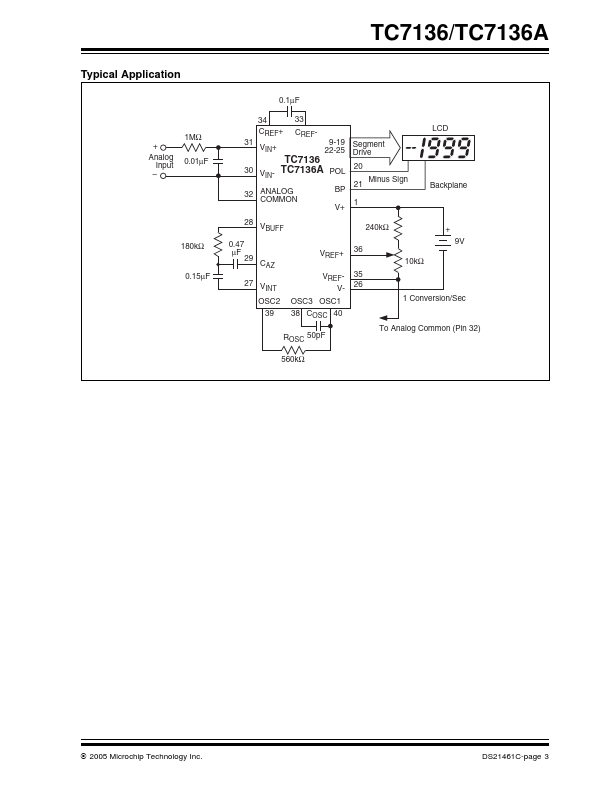

Additional preview pages of the TC7136A datasheet.

📁 Similar Datasheet

  • TC7136 - LOW POWER 3-1/2 DIGIT ANALOG-TO-DIGITAL CONVERTERS (TelCom)
  • TC7135 - 4-1/2 DIGIT ANALOG-TO-DIGITAL CONVERTER (TelCom)
  • TC71 - SYSTEM SUPERVISOR (TelCom)
  • TC7106 - 3-1/2 DIGIT A/D CONVERTERS (TelCom)
  • TC7107 - 3-1/2 DIGIT A/D CONVERTERS (TelCom)
  • TC7107A - 3-1/2 DIGIT A/D CONVERTERS (TelCom)
  • TC7109 - 12-BIT UP-COMPATIBLE ANALOG-TO-DIGITAL CONVERTERS (TelCom)
  • TC7109A - 12-BIT UP-COMPATIBLE ANALOG-TO-DIGITAL CONVERTERS (TelCom)
  • TC7116 - 3-1/2 DIGIT ANALOG-TO-DIGITAL CONVERTERS WITH HOLD (TelCom)
  • TC7117 - 3-1/2 DIGIT ANALOG-TO-DIGITAL CONVERTERS WITH HOLD (TelCom)
Other Datasheets by Microchip
  • TC7136 - Low Power 3-1/2 Digit Analog-to-Digital Converter
  • TC7135 - 4-1/2 Digit A/D Converter
  • TC7106 - 3-1/2 Digit Analog-to-Digital Converters
  • TC7106A - 3-1/2 Digit Analog-to-Digital Converters
  • TC7107 - 3-1/2 Digit Analog-to-Digital Converters
  • TC7107A - 3-1/2 Digit Analog-to-Digital Converters
  • TC7109 - Analog-to-Digital Converters
  • TC7109A - Analog-to-Digital Converters

Full PDF Text Transcription

Click to expand full text
Obsolete Device TC7136/TC7136A Low Power 3-1/2 Digit Analog-to-Digital Converter Features • Fast Over Range Recovery, Ensured First Reading Accuracy • Low Temperature Drift Internal Reference - TC7136: 70ppm/°C (Typ.) - TC7136A: 35ppm/°C (Typ.) • Zero Reading with Zero Input • Low Noise: 15μVP-P • High Resolution: 0.05% • Low Input Leakage Current: 1pA (Typ.)/10pA (Max.) • Precision Null Detectors with True Polarity at Zero • High-Impedance Differential Input • Convenient 9V Battery Operation with Low Power Dissipation: 500μW (Typ.)/900μW (Max.
