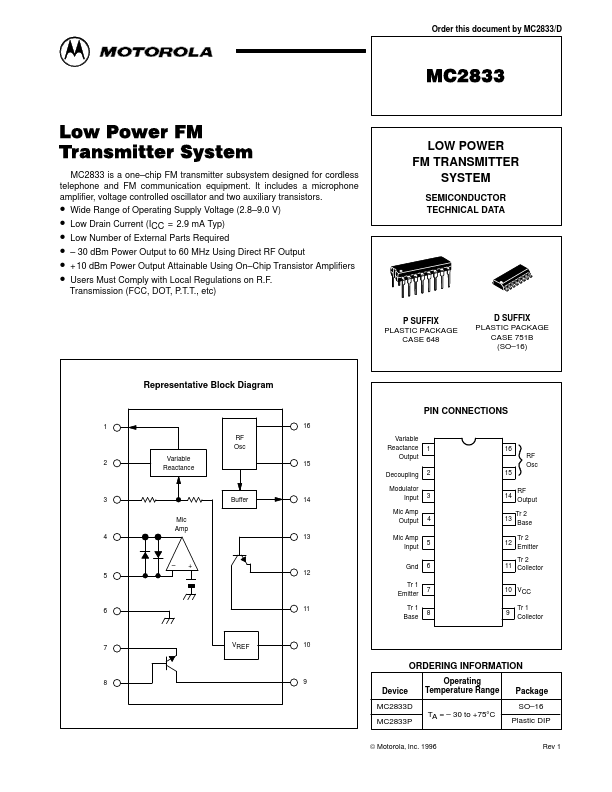

MC2833
Low Power FM Transmitter System
MC2833 is a one- chip FM transmitter subsystem designed for cordless telephone and FM munication equipment. It includes a microphone amplifier, voltage controlled oscillator and two auxiliary transistors.
- Wide Range of Operating Supply Voltage (2.8- 9.0 V)
- Low Drain Current (ICC = 2.9 m A Typ)
- Low Number of External Parts Required
- - 30 d Bm Power Output to 60 MHz Using Direct RF Output
- + 10 d Bm Power Output Attainable Using On- Chip Transistor Amplifiers
- Users Must ply with Local Regulations on R.F.
Transmission (FCC, DOT, P.T.T., etc)
LOW POWER FM TRANSMITTER
SYSTEM
SEMICONDUCTOR TECHNICAL DATA
P SUFFIX PLASTIC PACKAGE
CASE 648
D SUFFIX PLASTIC PACKAGE
CASE 751B (SO- 16)
Representative Block Diagram
RF Osc
Variable Reactance
Buffer
Mic
Amp
-...
