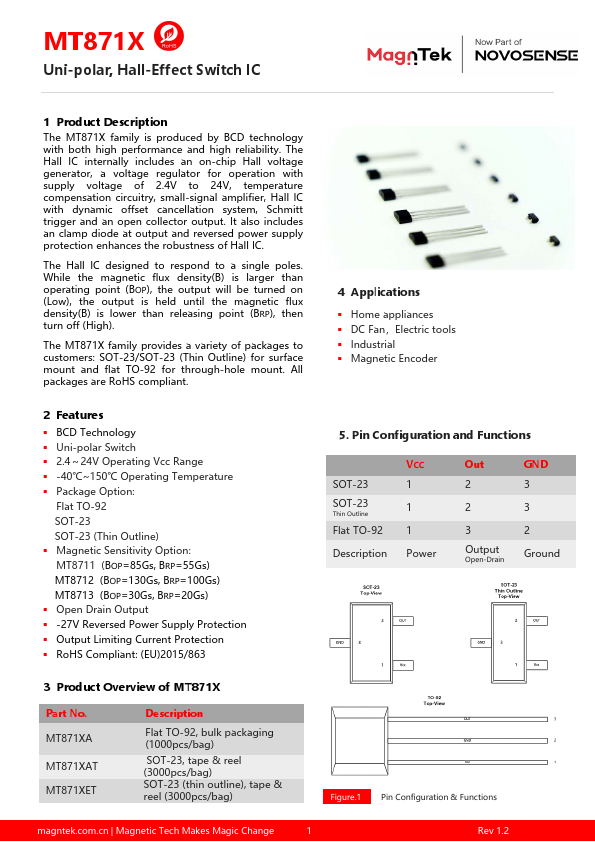

MT871X Uni-polar, Hall-Effect Switch IC 1 Product Description The MT871X family is produced by BCD technology with both high performance and high reliability. The Hall IC internally includes an on-chip Hall voltage generator, a voltage regulator for operation with supply voltage of 2.4V to 24V, temperature pensation circuitry, small-signal amplifier, Hall IC with dynamic offset cancellation system, Schmitt trigger and an open collector output. It also includes an clamp diode at output and reversed power supply protection enhances the robustness of Hall IC. The Hall IC designed to respond to a single poles. While the magnetic flux density(B) is larger than operating point (BOP), the output will be turned on (Low), the output is held until the magnetic flux density(B) is lower than releasing point (BRP), then turn off (High). The MT871X family provides a variety of packages to customers: SOT-23/SOT-23 (Thin Outline) for surface mount and flat TO-92 for through-hole mount. All packages are Ro HS pliant. 4 Applications ￭ Home appliances ￭ DC Fan，Electric tools ￭ Industrial ￭ Magnetic Encoder 2 Features ￭ BCD Technology ￭ Uni-polar Switch ￭ 2.4～24V Operating Vcc Range ￭ -40℃~150℃ Operating Temperature ￭ Package Option: Flat TO-92 SOT-23 SOT-23 (Thin Outline) ￭ Magnetic Sensitivity Option: MT8711 (BOP=85Gs, BRP=55Gs) MT8712 (BOP=130Gs, BRP=100Gs) MT8713 (BOP=30Gs, BRP=20Gs) ￭ Open Drain Output ￭ -27V Reversed Power Supply Protection ￭ Output Limiting Current Protection ￭ Ro HS pliant: (EU)2015/863 5. Pin Configuration and Functions SOT-23 SOT-23 Thin Outline Flat TO-92 Description VCC 1 1 1 Power Out 2 3 Output Open-Drain GND 3 3 2 Ground 3 Product Overview of MT871X Part No. MT871XA MT871XAT MT871XET Description Flat TO-92, bulk packaging (1000pcs/bag) SOT-23, tape & reel (3000pcs/bag) SOT-23 (thin outline), tape & reel (3000pcs/bag) Figure.1 Pin Configuration & Functions magntek..cn | Magnetic Tech Makes Magic Change Rev 1.2 MT871X Uni-pola...
