NSD1624 Description

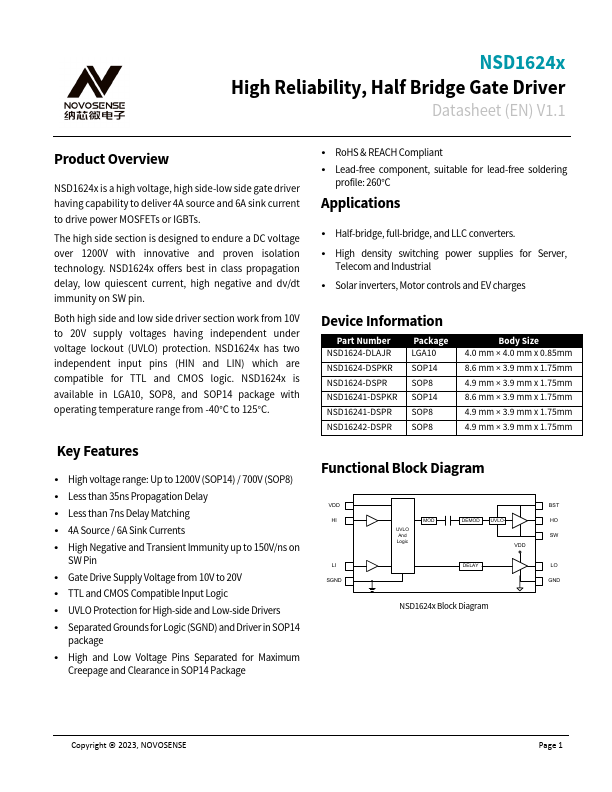

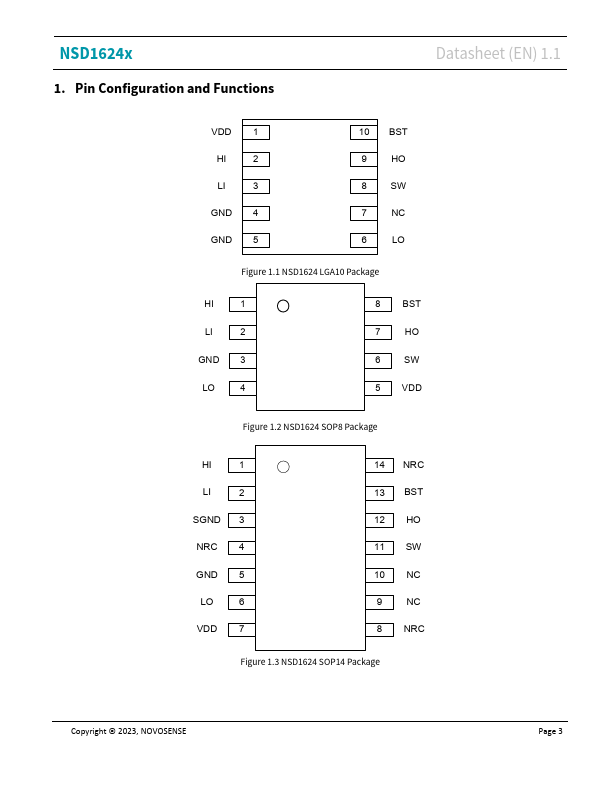

NSD1624x High Reliability, Half Bridge Gate Driver Datasheet (EN) V1.1 Product Overview NSD1624x is a high voltage, high side-low side gate driver having capability to deliver 4A source and 6A sink current to drive power MOSFETs or IGBTs. The high side section is designed to endure a DC voltage over 1200V with innovative and proven isolation technology. NSD1624x offers best in class propagation delay, low quiescent...
NSD1624 Key Features
- High voltage range: Up to 1200V (SOP14) / 700V (SOP8)
- Less than 35ns Propagation Delay
- Less than 7ns Delay Matching
- 4A Source / 6A Sink Currents
- High Negative and Transient Immunity up to 150V/ns on
- Gate Drive Supply Voltage from 10V to 20V
- TTL and CMOS patible Input Logic
- UVLO Protection for High-side and Low-side Drivers
- Separated Grounds for Logic (SGND) and Driver in SOP14
- High and Low Voltage Pins Separated for Maximum
