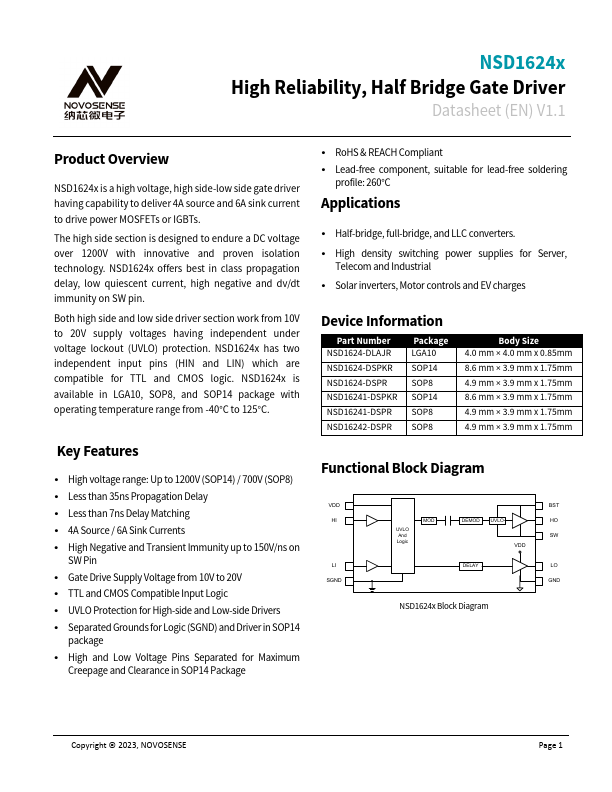

NSD16241 Datasheet | NOVOSENSE

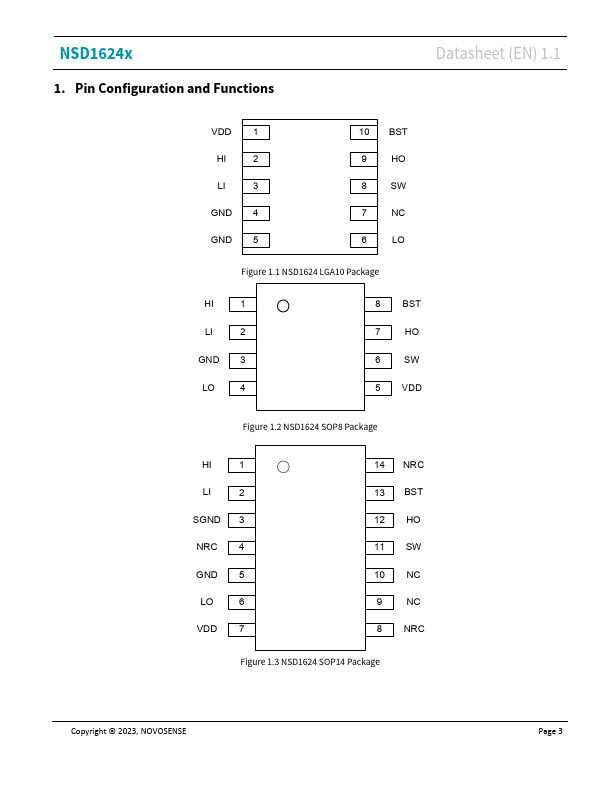

atures - High voltage range: Up to 1200V (SOP14) / 700V (SOP8) - Less than 35ns Propagation Delay - Less than 7ns Delay Matching - 4A Source / 6A Sink Currents - High Negative and Transient Immunity up to 150V/ns on SW Pin - Gate Drive Supply Voltage from 10V to 20V - TTL and CMOS patible Input Logic - UVLO Protection for High-side and Low-side Drivers - Separated Grounds for Logic (SGND) and Driver in SOP14 package - High and Low Voltage Pins Separated for Maximum Creepage and Clearance in SOP14 Package - Ro HS & REACH pliant - Lead-free ponent, suitable for lead-free soldering profile: 260°C Applications - Half-bridge, full-bridge, and LLC converters. - High density switching power supplies for Server, Tele and Industrial - Solar inverters, Motor controls and EV charges Device Information Part Number NSD1624-DLAJR NSD1624-DSPKR NSD1624-DSPR NSD16241-DSPKR NSD16241-DSPR NSD16242-DSPR Package LGA10 SOP14 SOP8 SOP14 SOP8 SOP8 Body Size 4.0 mm × 4.0 mm x 0.85mm 8.6 mm × 3.9 mm x 1.75mm 4.9 mm × 3.9 mm x 1.75mm 8.6 mm × 3.9 mm x 1.75mm 4.9 mm × 3.9 mm x 1.75mm 4.9 mm × 3.9 mm x 1.75mm Functional Block Diagram VDD HI LI SGND UVLO And Logic DEMOD...
