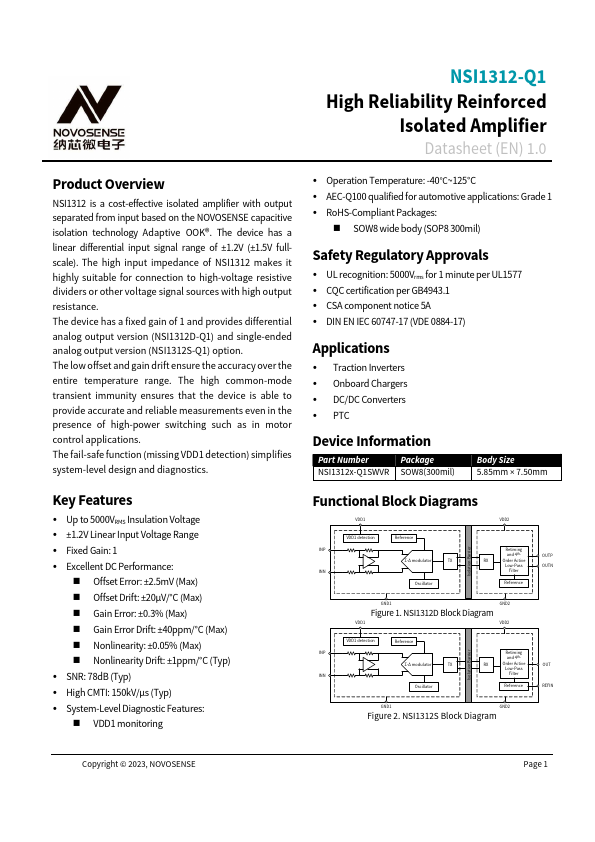

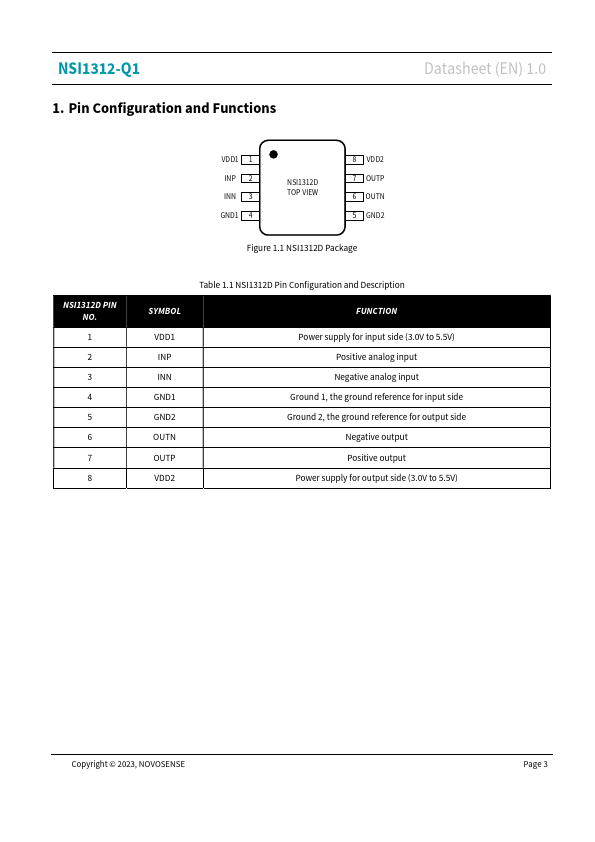

NSI1312-Q1 High Reliability Reinforced Isolated Amplifier Datasheet (EN) 1.0 Product Overview NSI1312 is a cost-effective isolated amplifier with output separated from input based on the NOVOSENSE capacitive isolation technology Adaptive OOK®. The device has a linear differential input signal range of ±1.2V (±1.5V fullscale). The high input impedance of NSI1312 makes it highly suitable for connection to high-voltage resistive dividers or other voltage signal sources with high output resistance. The device has a fixed gain of 1 and provides differential analog output version (NSI1312D-Q1) and single-ended analog output version (NSI1312S-Q1) option. The low offset and gain drift ensure the accuracy over the entire temperature range. The high mon-mode transient immunity ensures that the device is able to provide accurate and reliable measurements even in the presence of high-power switching such as in motor control applications. The fail-safe function (missing VDD1 detection) simplifies system-level design and diagnostics. - Operation Temperature: -40°C~125°C - AEC-Q100 qualified for automotive applications: Grade 1 - Ro HS-pliant Packages: - SOW8 wide body (SOP8 300mil) Safety Regulatory Approvals - UL recognition: 5000Vrms for 1 minute per UL1577 - CQC certification per GB4943.1 - CSA ponent notice 5A - DIN EN IEC 60747-17 (VDE 0884-17) Applications - Traction Inverters - Onboard Chargers - DC/DC Converters - PTC Device Information Part Number Package NSI1312x-Q1SWVR SOW8(300mil) Body Size 5.85mm × 7.50mm Key Features - Up to 5000VRMS Insulation Voltage - ±1.2V Linear Input Voltage Range - Fixed Gain: 1 - Excellent DC Performance: - Offset Error: ±2.5m V...
