NSI1312 Description

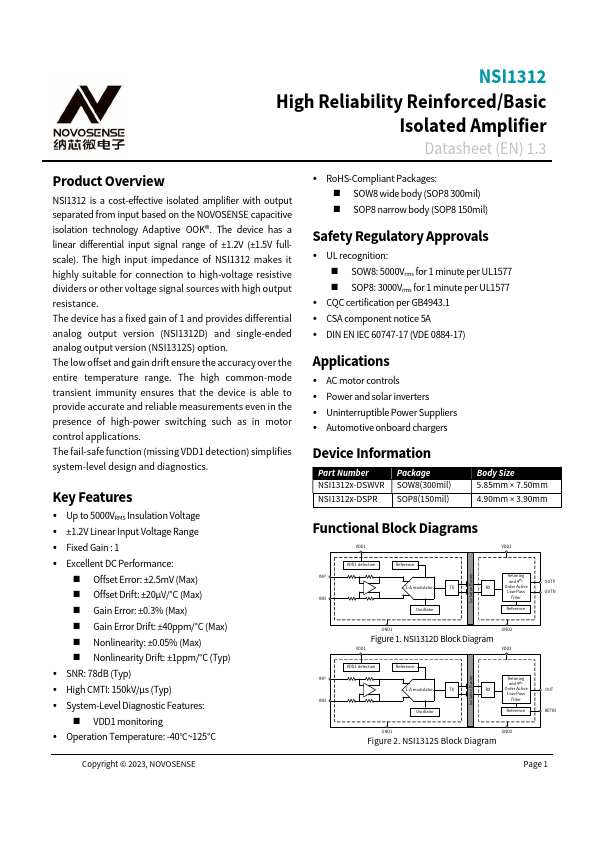

NSI1312 High Reliability Reinforced/Basic Isolated Amplifier Datasheet (EN) 1.3 Product Overview NSI1312 is a cost-effective isolated amplifier with output separated from input based on the NOVOSENSE capacitive isolation technology Adaptive OOK®. The device has a linear differential input signal range of ±1.2V (±1.5V fullscale). The high input impedance of NSI1312 makes it highly suitable for connection to...
NSI1312 Key Features
- Up to 5000VRMS Insulation Voltage
- ±1.2V Linear Input Voltage Range
- Fixed Gain : 1
- Excellent DC Performance
- Offset Error: ±2.5mV (Max)
- Offset Drift: ±20μV/°C (Max)
- Gain Error: ±0.3% (Max)
- Gain Error Drift: ±40ppm/°C (Max)
- Nonlinearity: ±0.05% (Max)
- Nonlinearity Drift: ±1ppm/°C (Typ)
