Datasheet Details
| Part number | NSi1311 |
|---|---|
| Manufacturer | NOVOSENSE |
| File Size | 2.08 MB |
| Description | High Reliability Reinforced Isolated Amplifier |
| Datasheet |

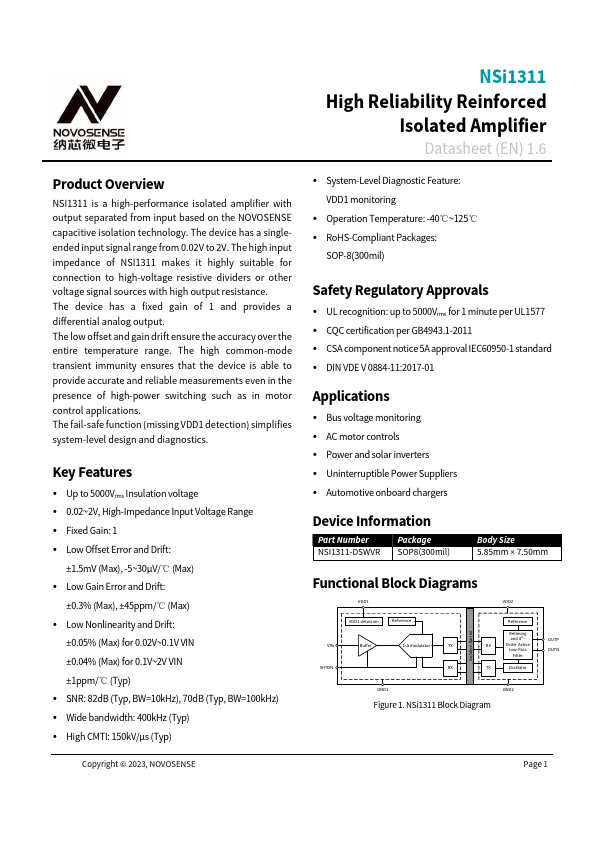

 NSi1311 Datasheet
|
|
|
General Description
8 6.1.
INSULATION AND SAFETY RELATED SPECIFICATIONS 8 6.2.
INSULATION CHARACTERISTICS 9 6.3.
Key Features
- Up to 5000Vrms Insulation voltage.
- 0.02~2V, High-Impedance Input Voltage Range.
- Fixed Gain: 1.
- Low Offset Error and Drift: ±1.5mV (Max), -5~30μV/℃ (Max).
- Low Gain Error and Drift: ±0.3% (Max), ±45ppm/℃ (Max).
- Low Nonlinearity and Drift: ±0.05% (Max) for 0.02V~0.1V VIN ±0.04% (Max) for 0.1V~2V VIN ±1ppm/℃ (Typ).
- SNR: 82dB (Typ, BW=10kHz), 70dB (Typ, BW=100kHz).
- Wide bandwidth: 400kHz (Typ).
- High CMTI: 150kV/μs (Typ).
- System-Level Diagnostic Feat.
