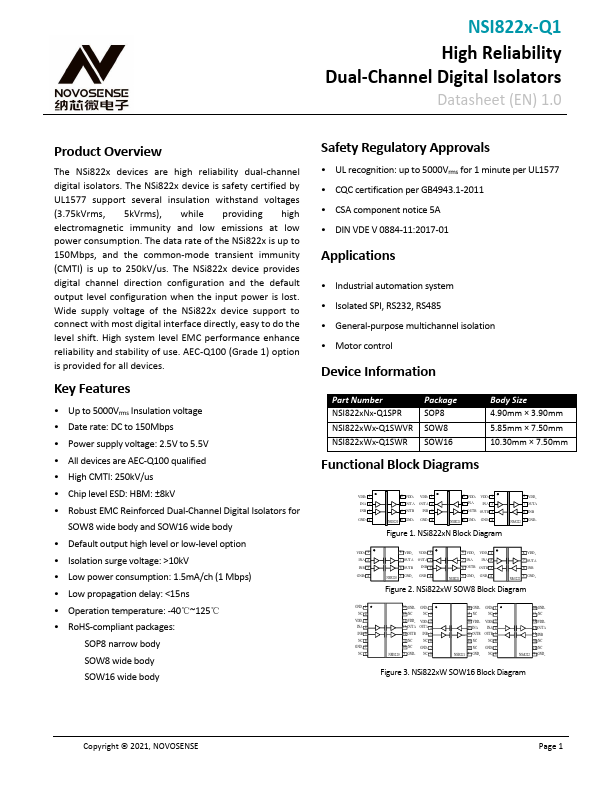

NSI8220-Q1 - High Reliability Dual-Channel Digital Isolators

📥 Download Datasheet

Datasheet Details

Part number NSI8220-Q1
Manufacturer NOVOSENSE
File Size 2.48 MB
Description High Reliability Dual-Channel Digital Isolators
Datasheet download datasheet NSI8220-Q1 Datasheet

Overview

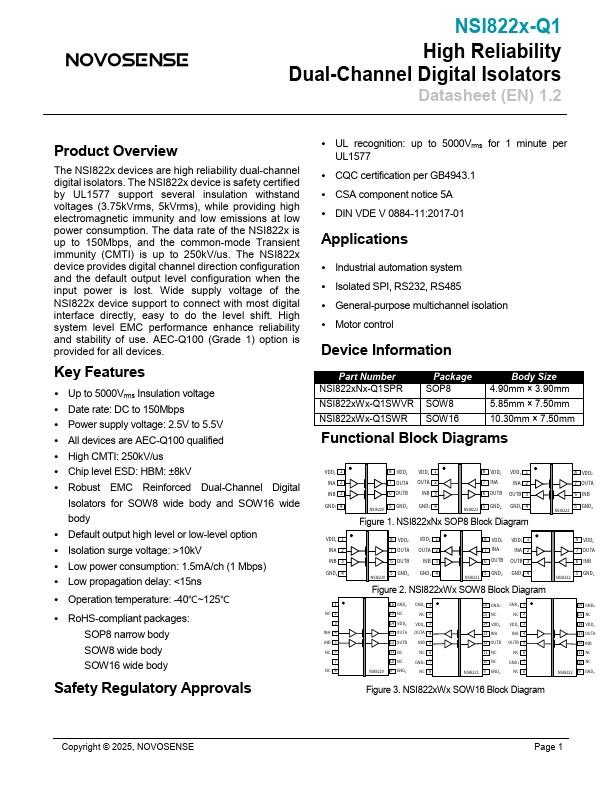

NSI822x-Q1 High Reliability Dual-Channel Digital Isolators Datasheet (EN) 1.2 Product Overview The NSI822x devices are high reliability dual-channel digital isolators.

Key Features

  • Up to 5000Vrms Insulation voltage.
  • Date rate: DC to 150Mbps.
  • Power supply voltage: 2.5V to 5.5V.
  • All devices are AEC-Q100 qualified.
  • High CMTI: 250kV/us.
  • Chip level ESD: HBM: ±8kV.
  • Robust EMC Reinforced Dual-Channel Digital Isolators for SOW8 wide body and SOW16 wide body.
  • Default output high level or low-level option.
  • Isolation surge voltage: >10kV.
  • Low power consumption: 1.5mA/ch (1 Mbps).
  • Low propagation delay:.
