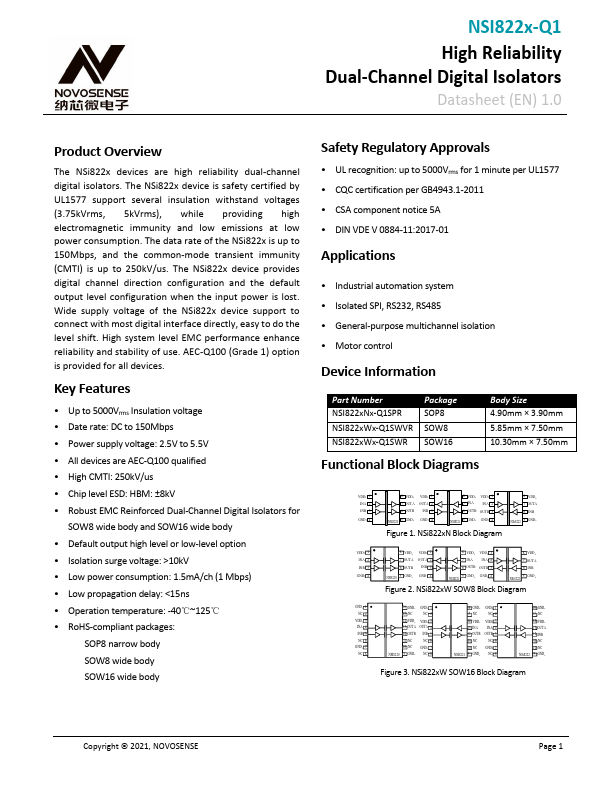

Datasheet Details
| Part number | NSI8221-Q1 |
|---|---|
| Manufacturer | NOVOSENSE |
| File Size | 2.48 MB |
| Description | High Reliability Dual-Channel Digital Isolators |
| Datasheet | NSI8221-Q1 NSI8220-Q1 Datasheet (PDF) |
|
|

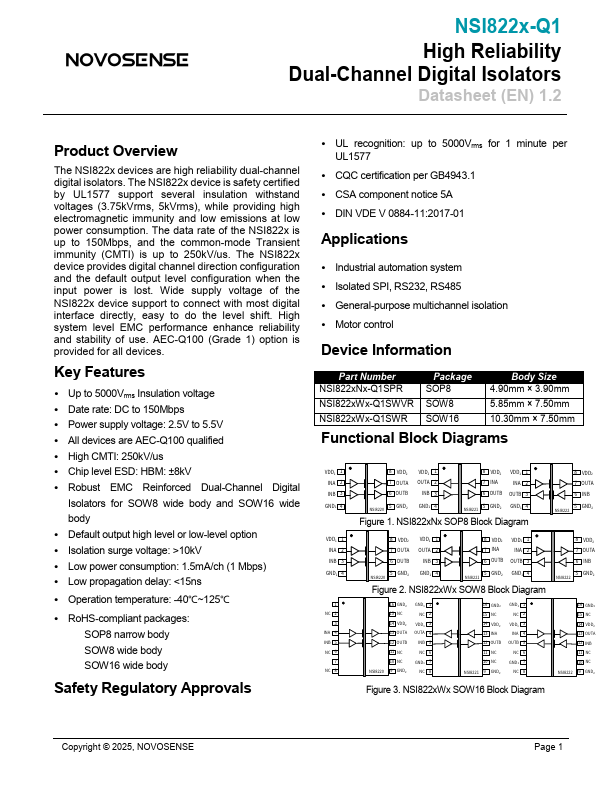

Overview: NSI822x-Q1 High Reliability Dual-Channel Digital Isolators Datasheet (EN) 1.2 Product Overview The NSI822x devices are high reliability dual-channel digital isolators. The NSI822x device is safety certified by UL1577 support several insulation withstand voltages (3.75kVrms, 5kVrms), while providing high electromagnetic immunity and low emissions at low power consumption. The data rate of the NSI822x is up to 150Mbps, and the mon-mode Transient immunity (CMTI) is up to 250kV/us. The NSI822x device provides digital channel direction configuration and the default output level configuration when the input power is lost. Wide supply voltage of the NSI822x device support to connect with most digital interface directly, easy to do the level shift. High system level EMC performance enhance reliability and stability of use. AEC-Q100 (Grade 1) option is provided for all devices.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | NSI8221-Q1 |
|---|---|
| Manufacturer | NOVOSENSE |
| File Size | 2.48 MB |
| Description | High Reliability Dual-Channel Digital Isolators |
| Datasheet | NSI8221-Q1 NSI8220-Q1 Datasheet (PDF) |
|
|
|
| Part Number | Description |
|---|---|
| NSI8221 | High Reliability Dual-Channel Digital Isolators |
| NSi8221C | Dual-Channel Digital Isolators |
| NSI8220 | High Reliability Dual-Channel Digital Isolators |
| NSI8220-Q1 | High Reliability Dual-Channel Digital Isolators |
| NSi8220C | Dual-Channel Digital Isolators |
| NSI8222 | High Reliability Dual-Channel Digital Isolators |
| NSI8222-Q1 | High Reliability Dual-Channel Digital Isolators |
| NSi8222C | Dual-Channel Digital Isolators |
| NSi8230 | Triple-Channel Digital Isolators |
| NSi8231 | Triple-Channel Digital Isolators |
