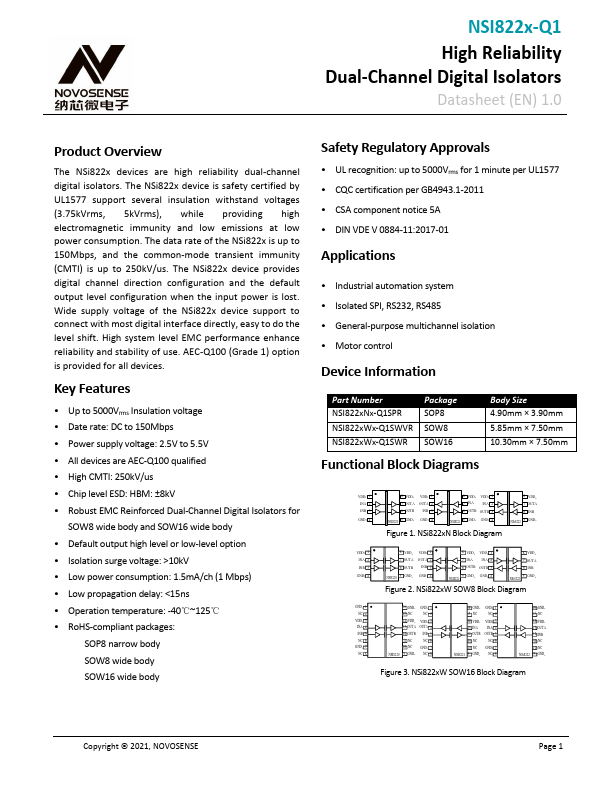

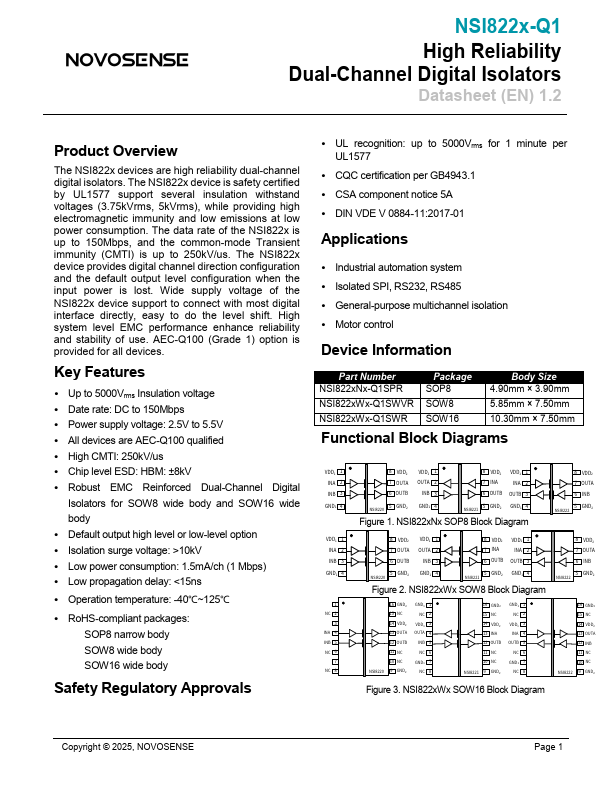

NSI8222-Q1 Datasheet | NOVOSENSE

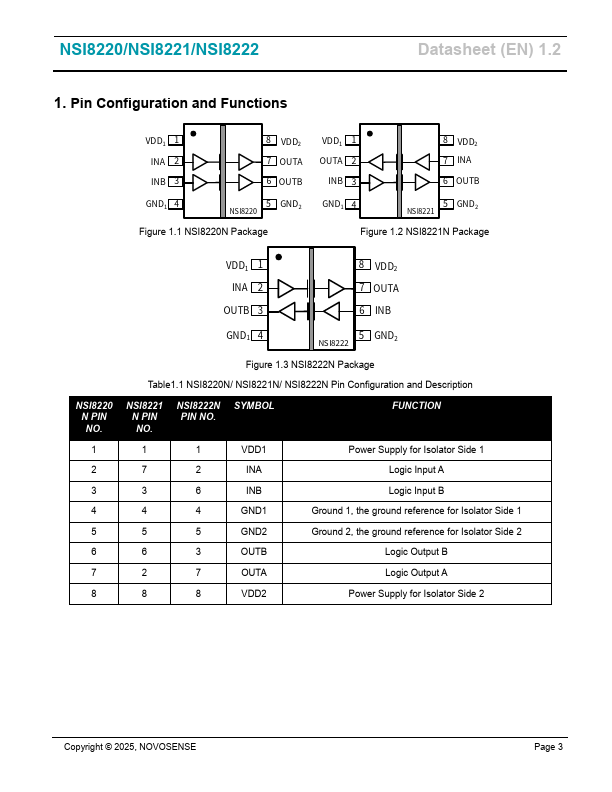

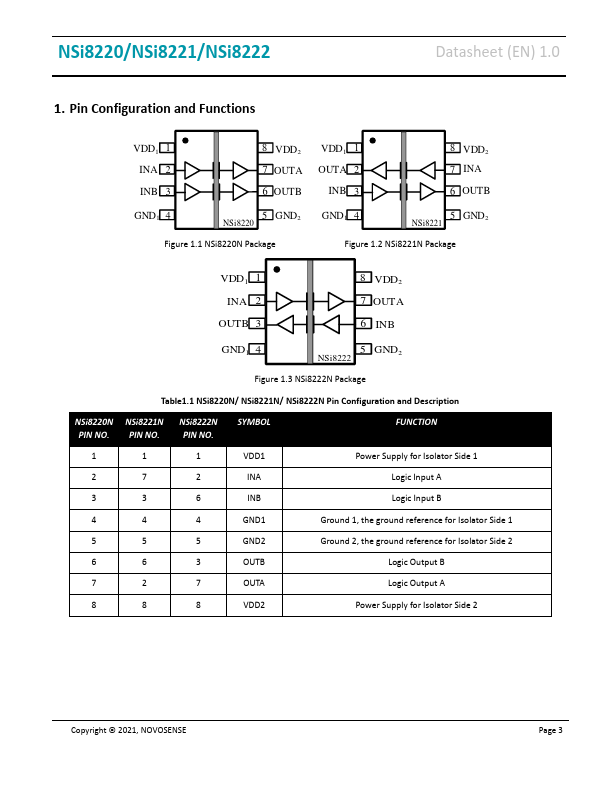

Overview The NSI822x devices are high reliability dual-channel digital isolators. The NSI822x device is safety certified by UL1577 support several insulation withstand voltages (3.75k Vrms, 5k Vrms), while providing high electromagnetic immunity and low emissions at low power consumption. The data rate of the NSI822x is up to 150Mbps, and the mon-mode Transient immunity (CMTI) is up to 250k V/us. The NSI822x device provides digital channel direction configuration and the default output level configuration when the input power is lost. Wide supply voltage of the NSI822x device support to connect with most digital interface directly, easy to do the level shift. High system level EMC performance enhance reliability and stability of use. AEC-Q100 (Grade 1) option is provided for all devices. Key Features - Up to 5000Vrms Insulation voltage - Date rate: DC to 150Mbps - Power supply voltage: 2.5V to 5.5V - All devices are AEC-Q100 qualified - High CMTI: 250k V/us - Chip level ESD: HBM: ±8k V - Robust EMC Reinforced Dual-Channel Digital Isolators for SOW8 wide body and SOW16 wide body - Default output high level or low-level option - Isolation surge voltage: >10k V - Low power consumption: 1.5m A/ch (1 Mbps) - Low propagation delay: <15ns - Operation temperature: -40℃~125℃ - Ro HS-pliant packages: SOP8 narrow body SOW8 wide body SOW16 wide body Safety Regulatory Approvals - UL recognition: up to 5000Vrms for 1 minute per UL1577 - CQC certification per GB4943.1 - CSA ponent notice 5A - DIN VDE V 0884-11:2017-01 Applications - Industrial automation system - Isolated SPI, RS232, RS485 - General-purpose multichannel isolation - Motor control Device Information Part Number NSI822x Nx-Q1SPR NSI822x Wx-Q1SWVR NSI822x Wx-Q1SWR Package SOP8 SOW8 SOW16 Body Size 4.90mm × 3.90mm 5.85mm × 7.50mm 10.30mm × 7.50mm Functional Block Diagrams VDD1 1 INA 2 INB 3 GND1...
