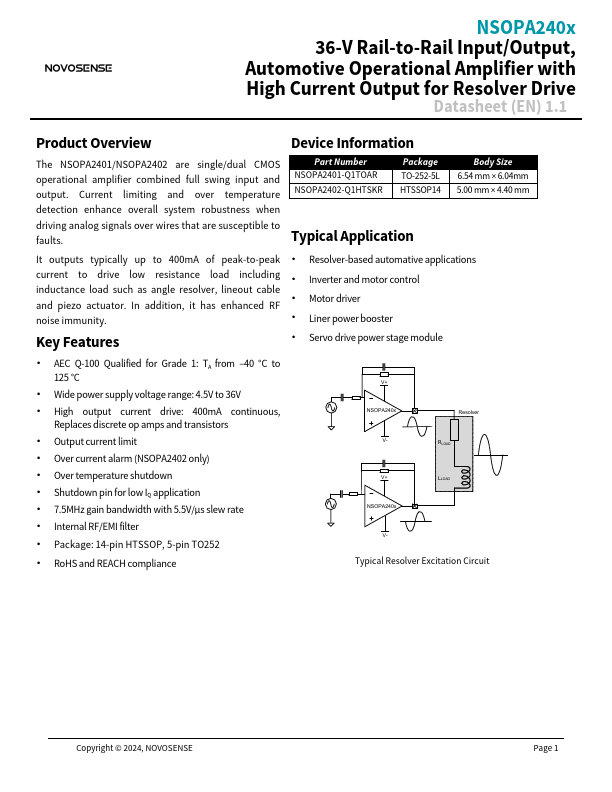

NSOPA2401 Overview
Key Features
- Servo drive power stage module
- AEC Q-100 Qualified for Grade 1: TA from –40 °C to 125 °C
- Wide power supply voltage range: 4.5V to 36V
- High output current drive: 400mA continuous, Replaces discrete op amps and transistors
- Output current limit
- Over current alarm (NSOPA2402 only)
- Over temperature shutdown
- Shutdown pin for low IQ application
- 7.5MHz gain bandwidth with 5.5V/µs slew rate
- Internal RF/EMI filter
