NSOPA2402 Datasheet | NOVOSENSE

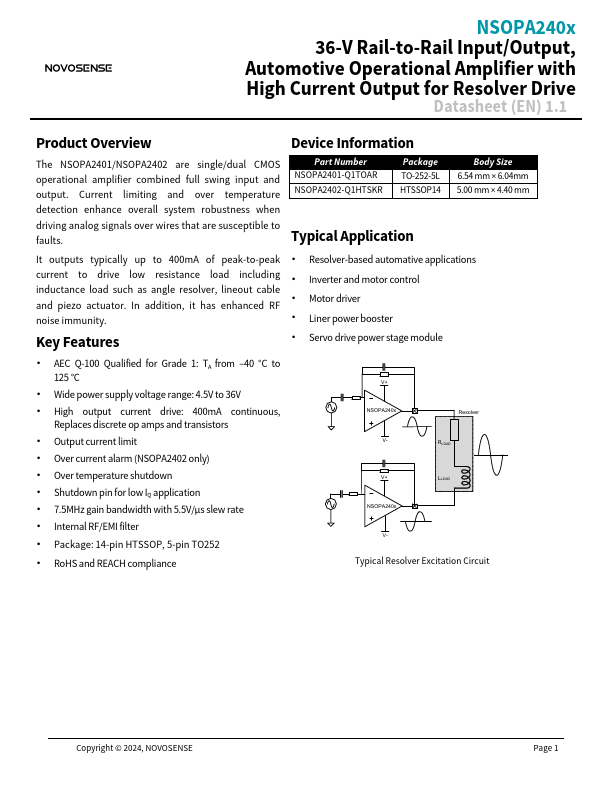

NSOPA240x 36-V Rail-to-Rail Input/Output, Automotive Operational Amplifier with High Current Output for Resolver Drive Datasheet (EN) 1.1 Product Overview The NSOPA2401/NSOPA2402 are single/dual CMOS operational amplifier bined full swing input and output. Current limiting and over temperature detection enhance overall system robustness when driving analog signals over wires that are susceptible to faults. Device Information Part Number NSOPA2401-Q1TOAR Package TO-252-5L NSOPA2402-Q1HTSKR HTSSOP14 Typical Application Body Size 6.54 mm × 6.04mm 5.00 mm × 4.40 mm It outputs typically up to 400m A of peak-to-peak - Resolver-based automative applications current to drive low resistance load including - Inverter and motor control inductance load such as angle resolver, lineout cable and piezo actuator. In addition, it has enhanced RF - Motor driver noise immunity. - Liner power booster Key Features - Servo drive power stage module - AEC Q-100 Qualified for Grade 1: TA from - 40 °C to 125 °C - Wide power supply voltage range: 4.5V to 36V - High output current drive: 400m A continuous, Replaces discrete op amps and transistors - Output current limit - Over current alarm (NSOPA2402 only) - Over temperature shutdown - Shutdown pin for low IQ application - 7.5MHz gain bandwidth with 5.5V/µs slew rate - Internal RF/EMI filter - Package: 14-pin HTSSOP, 5-pin TO252 - Ro HS and REACH...
