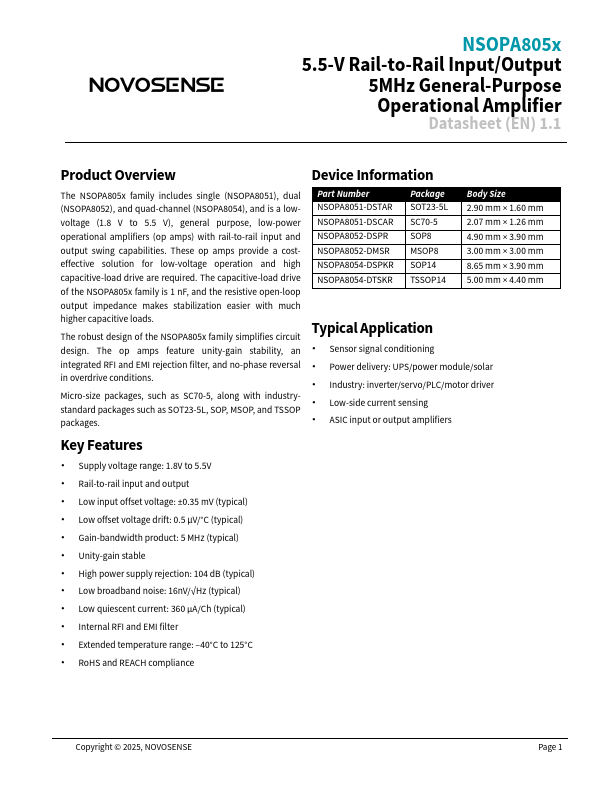

NSOPA805x 5.5-V Rail-to-Rail Input/Output
5MHz General-Purpose Operational Amplifier
Datasheet (EN) 1.1
Product Overview
Device Information
The NSOPA805x family includes single (NSOPA8051), dual (NSOPA8052), and quad-channel (NSOPA8054), and is a lowvoltage (1.8 V to 5.5 V), general purpose, low-power operational amplifiers (op amps) with rail-to-rail input and output swing capabilities. These op amps provide a costeffective solution for low-voltage operation and high capacitive-load drive are required. The capacitive-load drive of the NSOPA805x family is 1 nF, and the resistive open-loop output impedance makes stabilization easier with much higher capacitive loads.
The robust design of the NSOPA805x family simplifies circuit design.
NSOPA8051 Datasheet
