NSOPA9052-Q1 - 40-V Rail-to-Rail Input/Output Low Offset Voltage Low Noise Operational Amplifier

This page provides the datasheet information for the NSOPA9052-Q1, a member of the NSOPA9051-Q1 40-V Rail-to-Rail Input/Output Low Offset Voltage Low Noise Operational Amplifier family.

Description

8.1.

OVERVIEW 16 8.2.

FUNCTIONAL BLOCK DIAGRAM 16 8.3.

Features

  • such as differential and common-mode input-voltage range to the supply rail, high output current (60mA), high slew rate (11V/µs), high capacitive load drive (1nF), and shutdown functionality make the NSOPA905x-Q1 a robust, high performance operational amplifier for high-voltage industrial.

📥 Download Datasheet

Datasheet preview – NSOPA9052-Q1

Datasheet Details

Part number NSOPA9052-Q1
Manufacturer NOVOSENSE
File Size 5.10 MB
Description 40-V Rail-to-Rail Input/Output Low Offset Voltage Low Noise Operational Amplifier
Datasheet download datasheet NSOPA9052-Q1 Datasheet
Additional preview pages of the NSOPA9052-Q1 datasheet.

📁 Similar Datasheet

Other Datasheets by NOVOSENSE
  • NSOPA9051-Q1 - 40-V Rail-to-Rail Input/Output Low Offset Voltage Low Noise Operational Amplifier
  • NSOPA9054-Q1 - 40-V Rail-to-Rail Input/Output Low Offset Voltage Low Noise Operational Amplifier
  • NSOPA8011-Q1 - 5.5-V Rail-to-Rail Input/Output 1.5MHz General-Purpose Operational Amplifier
  • NSOPA8012-Q1 - 5.5-V Rail-to-Rail Input/Output 1.5MHz General-Purpose Operational Amplifier
  • NSOPA8014-Q1 - 5.5-V Rail-to-Rail Input/Output 1.5MHz General-Purpose Operational Amplifier
  • NSOPA8051 - 5.5-V Rail-to-Rail Input/Output 5MHz General-Purpose Operational Amplifier
  • NSOPA8051-Q1 - 5.5-V Rail-to-Rail Input/Output 5MHz General-Purpose Operational Amplifier
  • NSOPA8052 - 5.5-V Rail-to-Rail Input/Output 5MHz General-Purpose Operational Amplifier

Full PDF Text Transcription

Click to expand full text

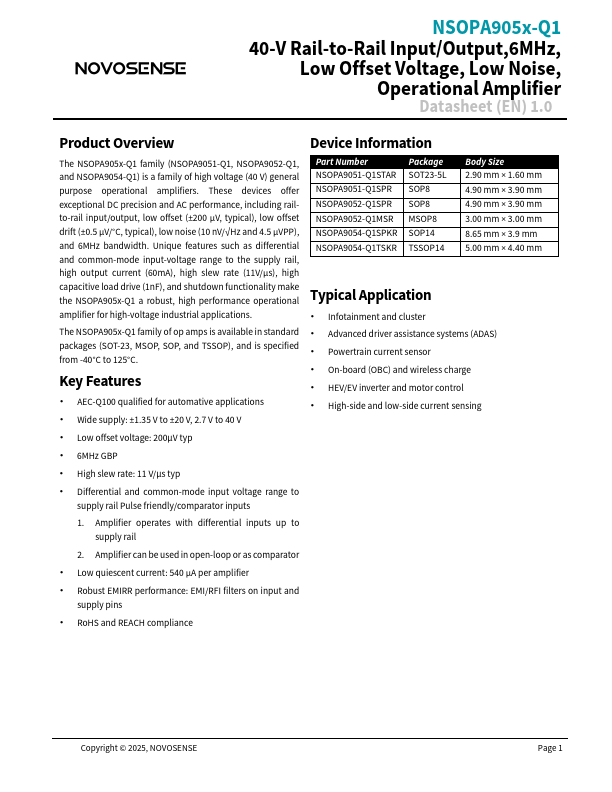

NSOPA905x-Q1 40-V Rail-to-Rail Input/Output,6MHz, Low Offset Voltage, Low Noise, Operational Amplifier Datasheet (EN) 1.0 Product Overview Device Information The NSOPA905x-Q1 family (NSOPA9051-Q1, NSOPA9052-Q1, and NSOPA9054-Q1) is a family of high voltage (40 V) general purpose operational amplifiers. These devices offer exceptional DC precision and AC performance, including railto-rail input/output, low offset (±200 µV, typical), low offset drift (±0.5 µV/°C, typical), low noise (10 nV/√Hz and 4.5 µVPP), and 6MHz bandwidth.
