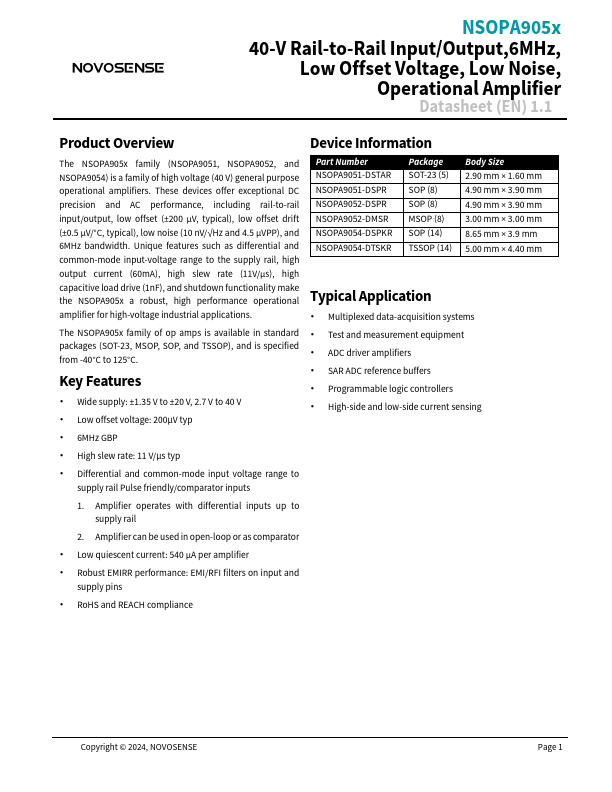

NSOPA905x 40-V Rail-to-Rail Input/Output,6MHz, Low Offset Voltage, Low Noise, Operational Amplifier Datasheet (EN) 1.1 Product Overview Device Information The NSOPA905x family (NSOPA9051, NSOPA9052, and NSOPA9054) is a family of high voltage (40 V) general purpose operational amplifiers. These devices offer exceptional DC precision and AC performance, including rail-to-rail input/output, low offset (±200 µV, typical), low offset drift (±0.5 µV/°C, typical), low noise (10 n V/√Hz and 4.5 µVPP), and 6MHz bandwidth. Unique Features such as differential and mon-mode input-voltage range to the supply rail, high output current (60m A), high slew rate (11V/µs), high capacitive load drive (1n F), and shutdown functionality make the NSOPA905x a robust, high performance operational amplifier for high-voltage industrial applications. The NSOPA905x family of op amps is available in standard packages (SOT-23, MSOP, SOP, and TSSOP), and is specified from -40°C to 125°C. Key Features - Wide supply: ±1.35 V to ±20 V, 2.7 V to 40 V - Low offset voltage: 200μV typ Part Number NSOPA9051-DSTAR NSOPA9051-DSPR NSOPA9052-DSPR NSOPA9052-DMSR NSOPA9054-DSPKR NSOPA9054-DTSKR Package SOT-23 (5) SOP (8) SOP (8) MSOP (8) SOP (14) TSSOP (14) Body Size 2.90 mm × 1.60 mm 4.90 mm × 3.90 mm 4.90 mm × 3.90 mm 3.00 mm × 3.00 mm 8.65 mm × 3.9 mm 5.00 mm × 4.40 mm Typical Application - Multiplexed data-acquisition systems - Test and measurement equipment - ADC driver amplifiers - SAR ADC reference buffers - Programmable logic controllers - High-side and low-side current sensing - 6MHz GBP - High slew rate: 11 V/μs typ - Differential and mon-mode input voltage range to supply rail Pulse friendly/parator inputs 1. Amplifier operates with differential inputs up to supply rail 2. Amplifier can be used in open-loop or as parator - Low quiescent current: 540 µA per amplifier - Robust EMIRR performance: EMI/RFI filters on input and supply pins - Ro HS and REACH pliance Copyright ©...
