NSiP83086
NSiP83086 is Signal Isolated RS-485 Transceiver manufactured by NOVOSENSE.

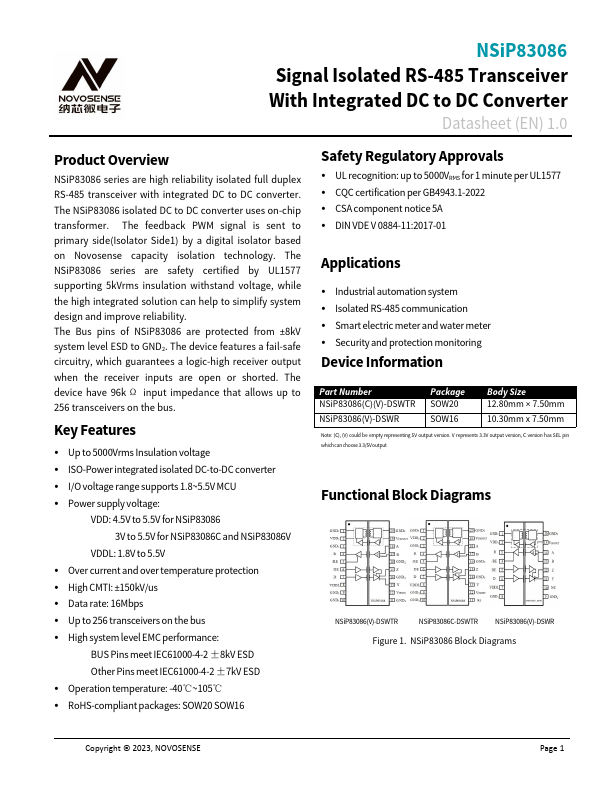

NSi P83086 Signal Isolated RS-485 Transceiver With Integrated DC to DC Converter
Datasheet (EN) 1.0

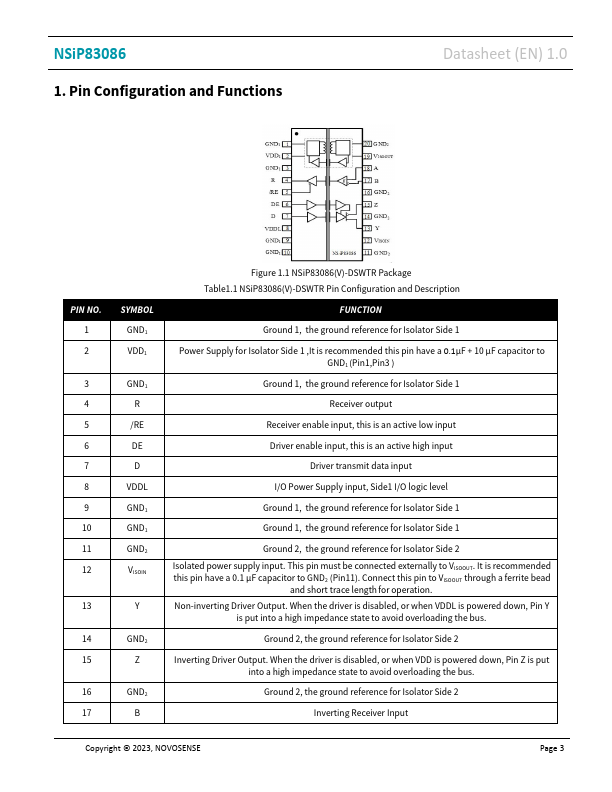

Product Overview
NSi P83086 series are high reliability isolated full duplex RS-485 transceiver with integrated DC to DC converter. The NSi P83086 isolated DC to DC converter uses on-chip transformer. The feedback PWM signal is sent to primary side(Isolator Side1) by a digital isolator based on Novosense capacity isolation technology. The NSi P83086 series are safety certified by UL1577 supporting 5k Vrms insulation withstand voltage, while the high integrated solution can help to simplify system design and improve reliability. The Bus pins of NSi P83086 are protected from ±8k V system level ESD to GND2. The device Features a fail-safe circuitry, which guarantees a logic-high receiver output when the receiver inputs are open or shorted. The device have 96k Ω input impedance that allows up to 256 transceivers on the bus.
Key Features
- Up to 5000Vrms Insulation voltage
- ISO-Power integrated isolated DC-to-DC converter
- I/O voltage range supports 1.8~5.5V MCU
- Power supply voltage:
VDD: 4.5V to 5.5V for NSi P83086 3V to 5.5V for NSi P83086C and NSi P83086V
VDDL: 1.8V to 5.5V
- Over current and over temperature protection
- High CMTI: ±150k V/us
- Data rate: 16Mbps
- Up to 256 transceivers on the bus
- High system level EMC performance:
BUS Pins meet IEC61000-4-2 ±8k V ESD
Other Pins meet IEC61000-4-2 ±7k V ESD
- Operation temperature: -40℃~105℃
- Ro HS-pliant packages: SOW20 SOW16
Safety Regulatory Approvals
- UL recognition: up to 5000VRMS for 1 minute per UL1577
- CQC certification per GB4943.1-2022
- CSA ponent notice 5A
- DIN VDE V 0884-11:2017-01
Applications
- Industrial automation system
- Isolated RS-485 munication
- Smart electric meter and water meter
- Security and protection...
