NSiP83086C - Signal Isolated RS-485 Transceiver

Description

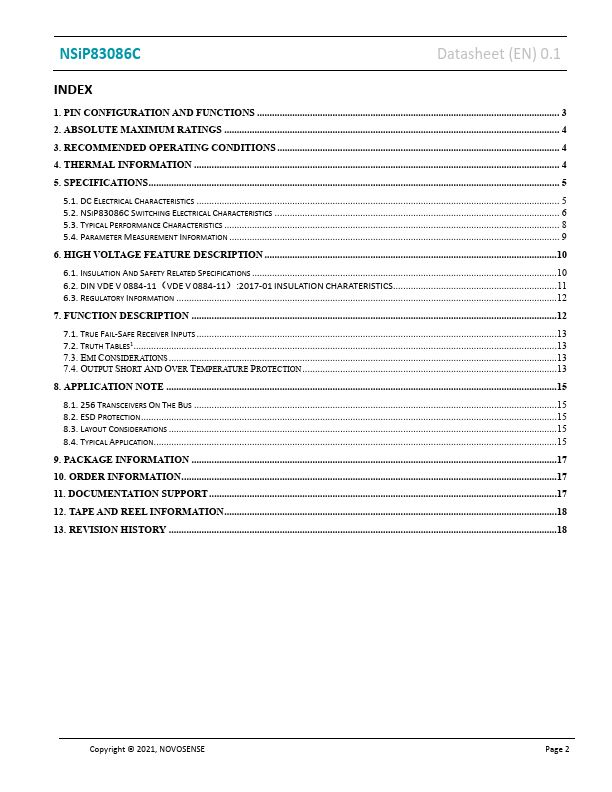

6.1.

INSULATION AND SAFETY RELATED SPECIFICATIONS 10 6.2.

DIN VDE V 0884-11（VDE V 0884-11）:2017-01 INSULATION CHARATERISTICS11 6.3.

Features

  • Up to 5000Vrms Insulation voltage.
  • ISO-Power integrated isolated dc-to-dc converter.
  • I/O voltage range supports 1.8~5.5V MCU.
  • Power supply voltage: VDD: 3.0V to 5.5V VDDL: 1.8V to 5.5V.
  • Over current and over temperature protection.
  • High CMTI: ±150kV/us.
  • Data rate: 16Mbps.
  • Up to 256 transceivers on the bus.
  • High system level EMC performance: Bus Pins meet IEC61000-4-2 ±10kV ESD.
  • Isolation Barrier Life: >60 years.
  • Operation temperature: -40℃~.

📥 Download Datasheet

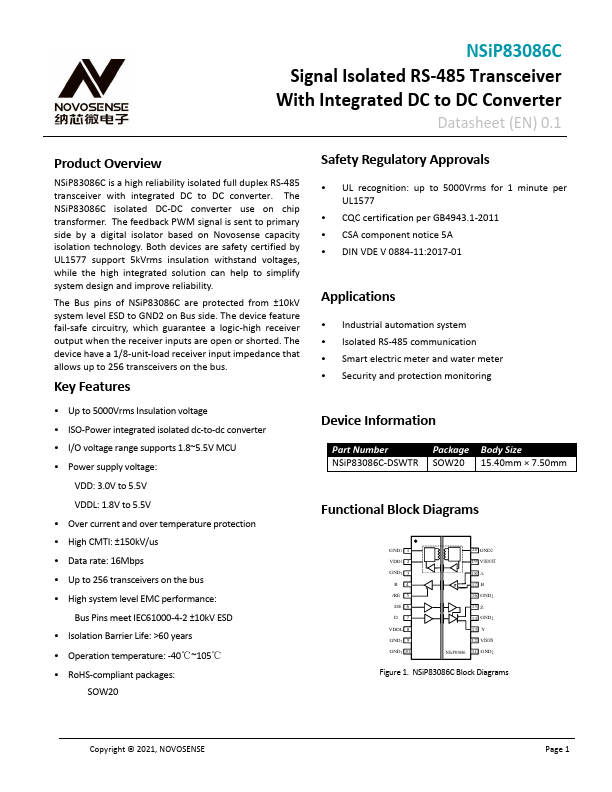

Datasheet preview – NSiP83086C

📁 Similar Datasheet

  • NSI1000 - 1024 x 32 Resolution CMOS Image Sensor (Newsight Imaging)
  • NSI3000 - CMOS Image Sensor (Newsight Imaging)
  • NSI45015WT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45020AT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45020JZ - Adjustable Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45020T1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025AT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025AZ - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025T1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025ZT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
Other Datasheets by NOVOSENSE
  • NSiP8820 - Dual-Channel Digital Isolators
  • NSiP8821 - Dual-Channel Digital Isolators
  • NSiP8822 - Dual-Channel Digital Isolators
  • NSiP8840 - Quad-Channel Digital Isolators
  • NSiP8841 - Quad-Channel Digital Isolators
  • NSiP8842 - Quad-Channel Digital Isolators
  • NSiP8843 - Quad-Channel Digital Isolators
  • NSiP8844 - Quad-Channel Digital Isolators

Full PDF Text Transcription

Click to expand full text

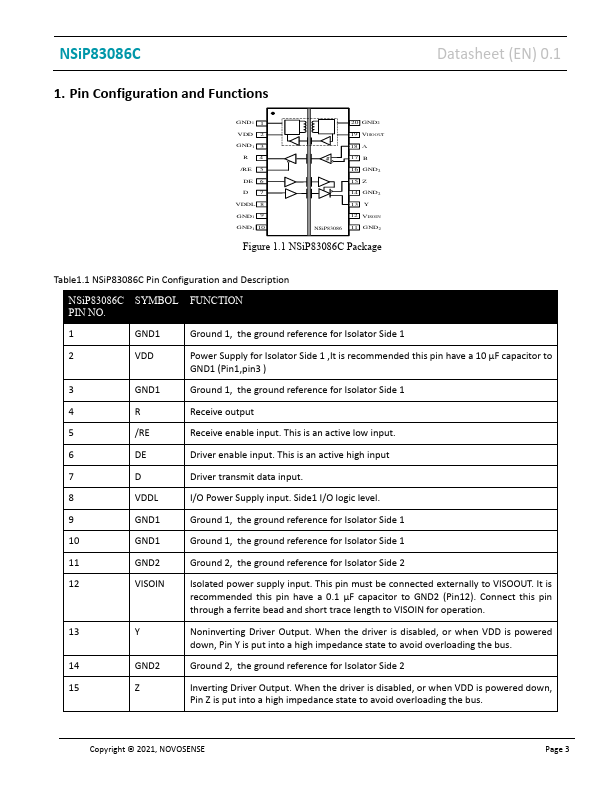

NSiP83086C Signal Isolated RS-485 Transceiver With Integrated DC to DC Converter Datasheet (EN) 0.1 Product Overview NSiP83086C is a high reliability isolated full duplex RS-485 transceiver with integrated DC to DC converter. The NSiP83086C isolated DC-DC converter use on chip transformer. The feedback PWM signal is sent to primary side by a digital isolator based on Novosense capacity isolation technology. Both devices are safety certified by UL1577 support 5kVrms insulation withstand voltages, while the high integrated solution can help to simplify system design and improve reliability. The Bus pins of NSiP83086C are protected from ±10kV system level ESD to GND2 on Bus side.
