BAP63-02 - Silicon PIN diode

General Description

cathode anode APPLICATIONS

RF attenuators and switches.

DESCRIPTION Planar PIN diode in a SOD523 ultra small SMD plastic package.

Marking code: K5.

Key Features

  • High speed switching for RF signals.
  • Low diode capacitance.
  • Low diode forward resistance.
  • Very low series inductance.
  • For.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAP63-03 Silicon PIN diode Leshan Radio Company
BAP63-03 Silicon PIN diode ETL
BAP64-04 Silicon PIN diode Kexin
BAP64-04 General Purpose Pin Diodes MCC
BAP64-04-HF PIN diode Kexin

Other Datasheets by NXP Semiconductors

Part Number Description
BAP63-01 Silicon PIN diode
BAP63-03 Silicon PIN diode
BAP63-05W Silicon PIN diode
BAP63LX Silicon PIN Diode
BAP64-02 Silicon PIN diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

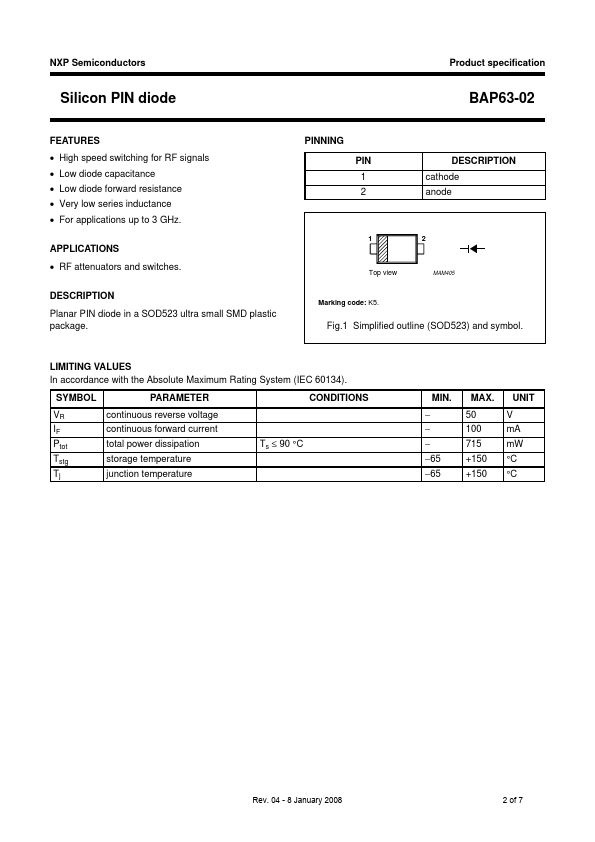

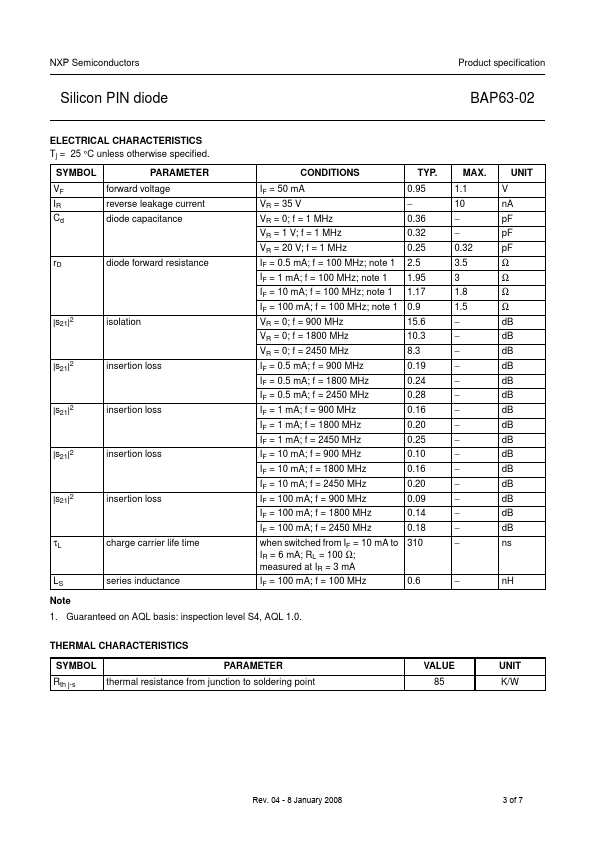

www.DataSheet4U.com DISCRETE SEMICONDUCTORS DATA SHEET M3D319 BAP63-02 Silicon PIN diode Product specification Supersedes data of 2001 Apr 04 2001 May 18 Philips Semiconductors Product specification Silicon PIN diode FEATURES • High speed switching for RF signals • Low diode capacitance • Low diode forward resistance • Very low series inductance • For applications up to 3 GHz. handbook, halfpage BAP63-02 PINNING PIN DESCRIPTION cathode anode APPLICATIONS • RF attenuators and switches. DESCRIPTION Planar PIN diode in a SOD523 ultra small SMD plastic package. Marking code: K5. Fig.1 Simplified outline (SOD523) and symbol.  1 2 1 2 Top view MAM405 LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134).
