BSP60 - PNP Darlington transistors

General Description

PNP Darlington transistor in a SOT223 plastic package.

NPN complements: BSP50, BSP51 and BSP52.

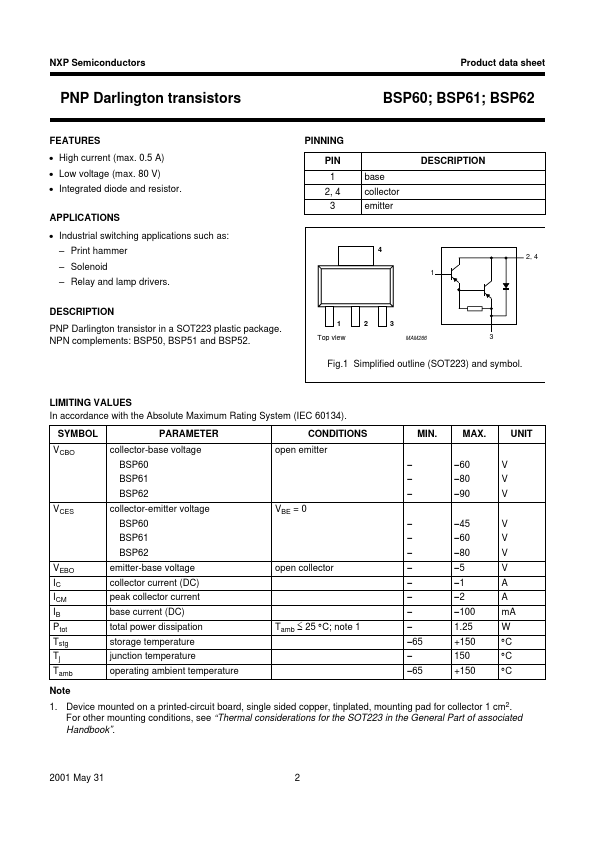

Fig.1 Simplified outline (SOT223) and symbol.

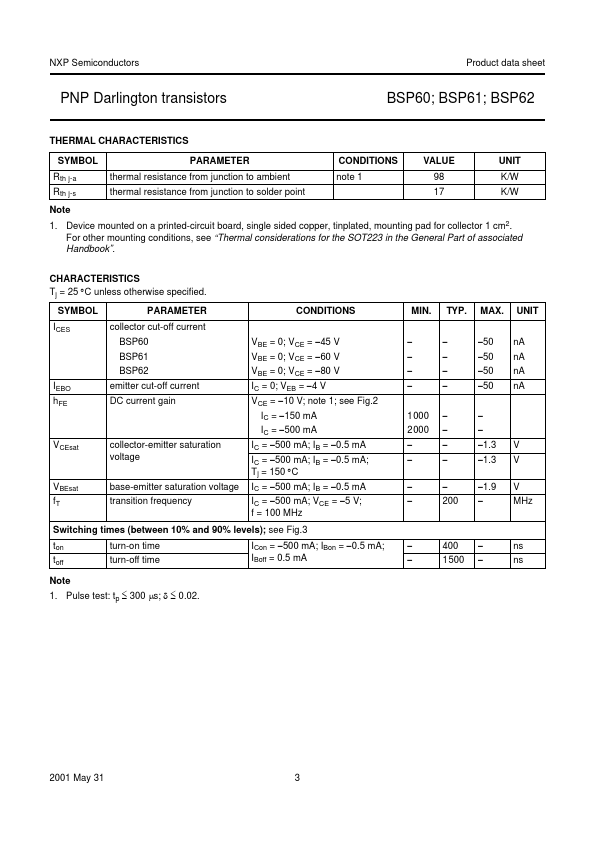

Key Features

  • High current (max. 0.5 A).
  • Low voltage (max. 80 V).
  • Integrated diode and resistor.
