LMS75ALS176A - Differential Bus Transceivers

General Description

The LMS75ALS176A is a differential bus/line transceiver designed for bidirectional data communication on multipoint bus transmission lines.

It is designed for balanced transmission lines.

It meets ANSI Standards TIA/EIA RS422-B, TIA/ EIA RS485-A and ITU recommendation V.11 and X.27.

Key Features

  • n Bidirectional transceiver n Meet ANSI standard RS-485-A and RS-422-B n Low skew, 2ns n Low supply current, 8mA (max. ) n Wide input and output voltage range n High output drive capacity ±60mA n Thermal shutdown protection n Open circuit fail-safe for receiver n Receiver input sensitivity ±200mV n Receiver input hysteresis 10mV (min. ) n Single supply voltage operation, 5V n Glitch free power-up and power-down operation n Data rates up to 35 Mbaud n Pin and functional compatible with TI’s SN75ALS.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LMS75ALS176A Differential Bus Transceivers Texas Instruments
LMS75LBC176 Differential Bus Transceivers Texas Instruments
LMS7002M FPRF MIMO Transceiver IC Lime Microsystems
LMS700JF01-001 LCD Module Samsung
LMS700KF01-001 TFT LCD Samsung

Other Datasheets by National Semiconductor (now Texas Instruments)

Part Number Description
LMS75LBC176 Differential Bus Transceivers
LMS1485 5V Low Power RS-485 Differential Bus Transceiver
LMS1487 5V Low Power RS-485 / RS-422 Differential Bus Transceiver
LMS1487E Low Power RS-485 / RS-422 Differential Bus Transceiver
LMS1585 5A and 3A Low Dropout Fast Response Regulators

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

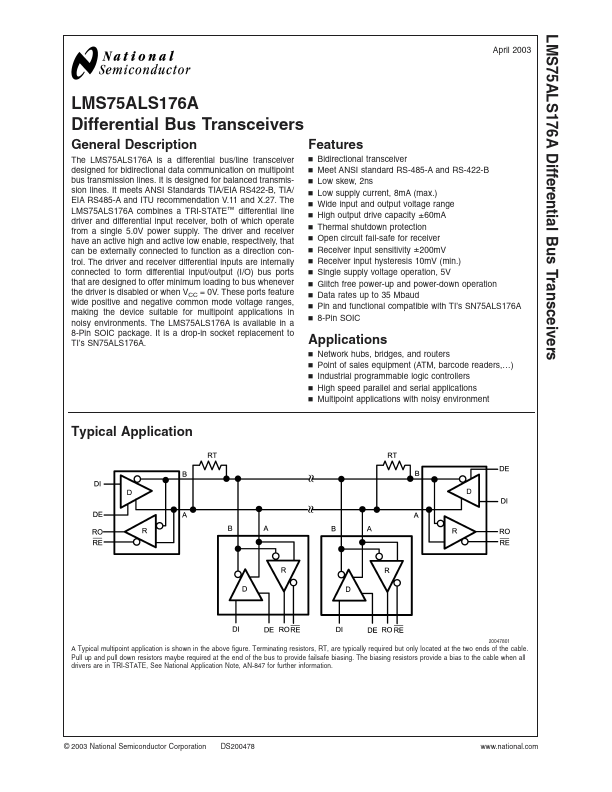

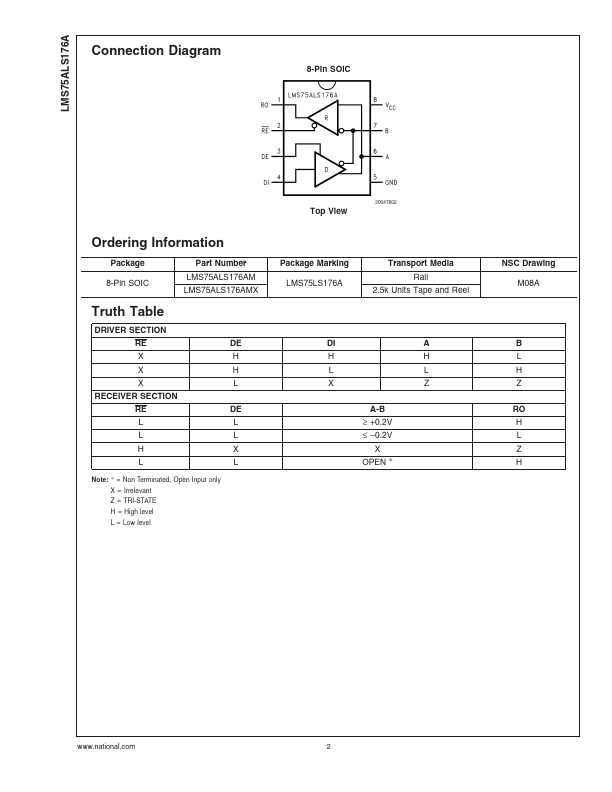

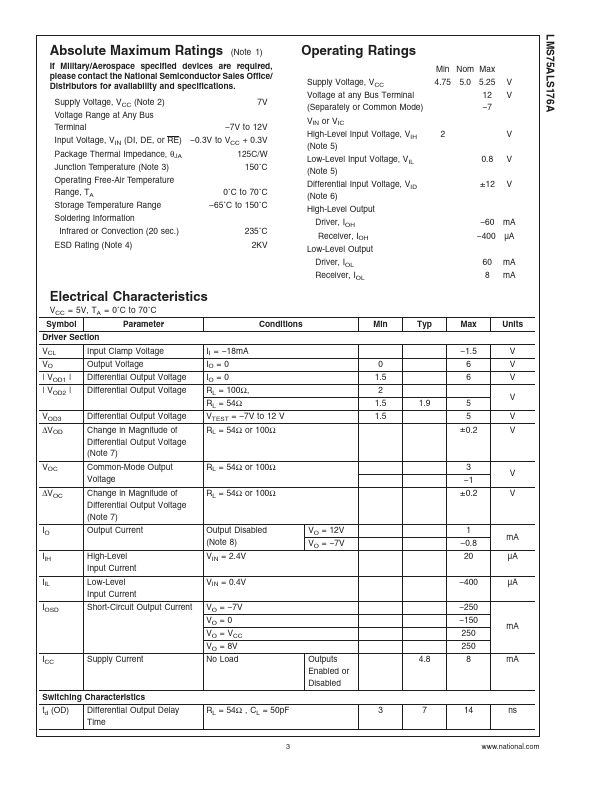

LMS75ALS176A Differential Bus Transceivers April 2003 LMS75ALS176A Differential Bus Transceivers General Description The LMS75ALS176A is a differential bus/line transceiver designed for bidirectional data communication on multipoint bus transmission lines. It is designed for balanced transmission lines. It meets ANSI Standards TIA/EIA RS422-B, TIA/ EIA RS485-A and ITU recommendation V.11 and X.27. The LMS75ALS176A combines a TRI-STATE™ differential line driver and differential input receiver, both of which operate from a single 5.0V power supply. The driver and receiver have an active high and active low enable, respectively, that can be externally connected to function as a direction control.
