LMS75ALS176A - Differential Bus Transceivers

General Description

The LMS75ALS176A is a differential bus/line transceiver designed for bidirectional data communication on multipoint bus transmission lines.

It is designed for balanced transmission lines.

It meets ANSI Standards TIA/EIA RS422-B, TIA/EIA RS485-A and ITU recommendation V.11 and X.27.

Key Features

  • 1.
  • 2 Bidirectional Transceiver.
  • Meet ANSI Standard RS-485-A and RS-422-B.
  • Low Skew, 2ns.
  • Low Supply Current, 8mA (max. ).
  • Wide Input and Output Voltage Range.
  • High Output Drive Capacity ±60mA.
  • Thermal Shutdown Protection.
  • Open Circuit Fail-Safe for Receiver.
  • Receiver Input Sensitivity ±200mV.
  • Receiver Input Hysteresis 10mV (min. ).
  • Single Supply Voltage Operation, 5V.
  • Glitch Free Power-Up and.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LMS75ALS176A Differential Bus Transceivers National Semiconductor
LMS75LBC176 Differential Bus Transceivers National Semiconductor
LMS7002M FPRF MIMO Transceiver IC Lime Microsystems
LMS700JF01-001 LCD Module Samsung
LMS700KF01-001 TFT LCD Samsung

Other Datasheets by Texas Instruments

Part Number Description
LMS75LBC176 Differential Bus Transceivers
LMS1485 5V Low Power RS-485 Differential Bus Transceiver
LMS1585A 5A and 3A Low Dropout Fast Response Regulators
LMS1587 5A and 3A Low Dropout Fast Response Regulators
LMS33460 3-V Undervoltage Detector

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

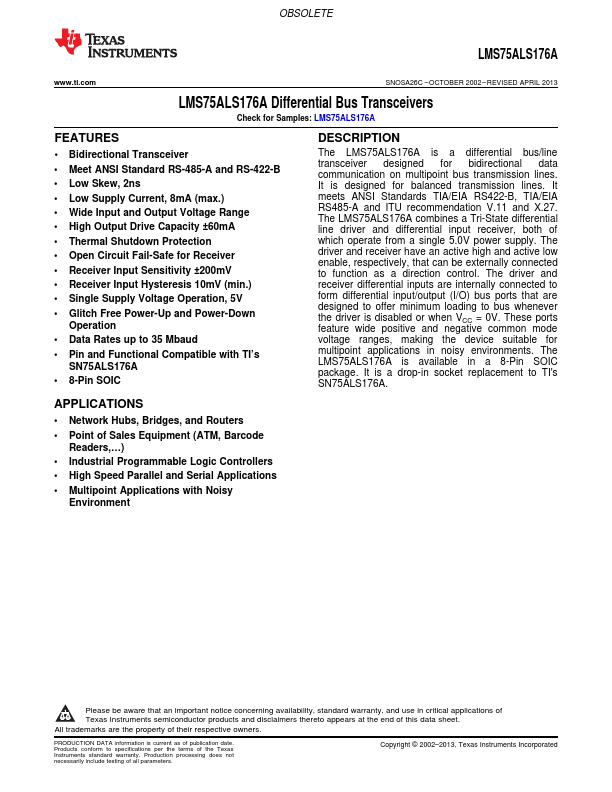

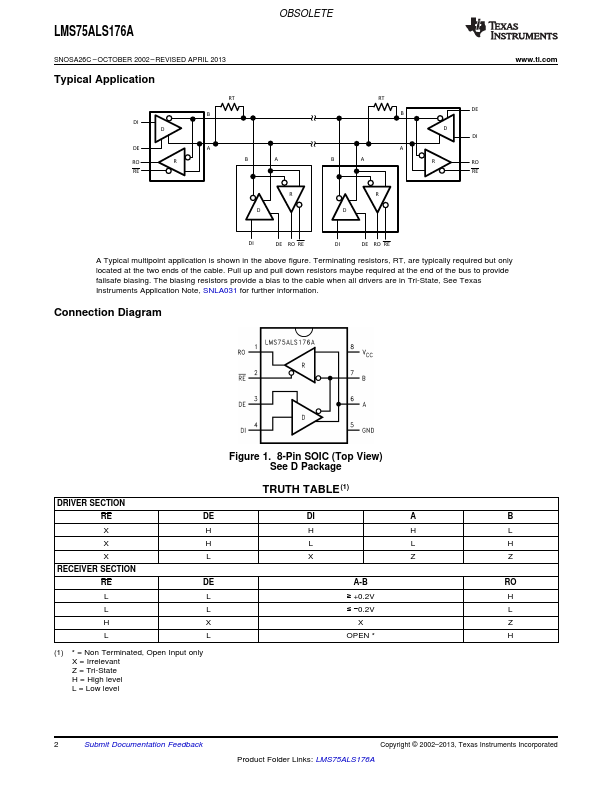

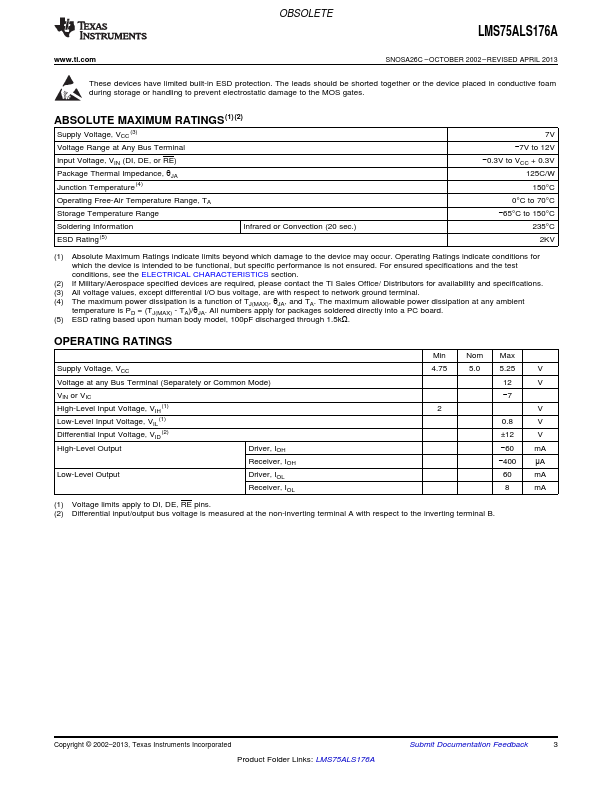

OBSOLETE LMS75ALS176A www.ti.com SNOSA26C – OCTOBER 2002 – REVISED APRIL 2013 LMS75ALS176A Differential Bus Transceivers Check for Samples: LMS75ALS176A FEATURES 1 •2 Bidirectional Transceiver • Meet ANSI Standard RS-485-A and RS-422-B • Low Skew, 2ns • Low Supply Current, 8mA (max.) • Wide Input and Output Voltage Range • High Output Drive Capacity ±60mA • Thermal Shutdown Protection • Open Circuit Fail-Safe for Receiver • Receiver Input Sensitivity ±200mV • Receiver Input Hysteresis 10mV (min.
