DS0025
DS0025 is Two Phase MOS Clock Driver manufactured by National Semiconductor.
Description
The DS0025/DS0025C is monolithic, low cost, two phase MOS clock driver that is designed to be driven by TTL/DTL line drivers or buffers such as the DM932, DS8830 or DM7440. Two input coupling capacitors are used to perform the level shift from TTL/DTL to MOS logic levels. Optimum performance in turn- off delay and fall time Me obtained when the output pulse is logically con- trolled by the input. However, output pulse widths may be set by selection of the input capacitors eliminating the need for tight input pulse control.
Features
.. 8- lead TO- 5 or 8- lead dual- in- line package .. High Output Voltage Swings-up to 30V .. High Output Current Drive Capability-.up to
1.5A
.. Rep. Rate: 1.0 MHz into> 1000 p F D Driven by DM932, DS8830, DM7440 (SN7440) .. "Zero" Quiescent Power
Connection Diagrams

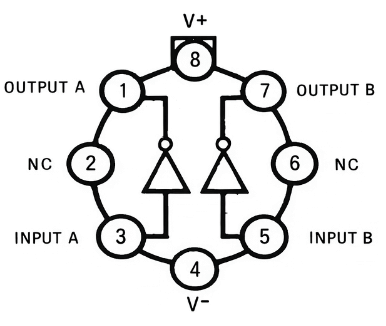

Metal Can Package v-
Dual- 1 n- Line...
Representative DS0025 image (package may vary by manufacturer)
