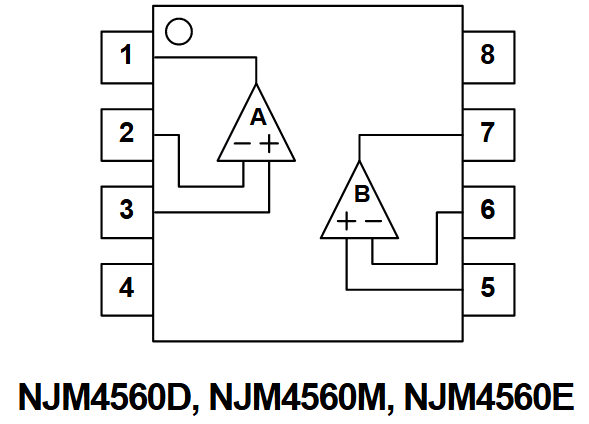

DUAL OPERATIONAL AMPLIFIER - GENERAL DESCRIPTION The NJM4560 integrated circuit is a high-gain, wide bandwidth, dual operational amplifier capable of driving 20V peak-to-peak into 400Ω loads. The NJM4560 bines many of the Features of the NJM4558 as well as providing the capability of wider bandwidth, and higher slew rate make the NJM4560 ideal for active filters, data and telemunications, and many instrumentation applications. The availability of the NJM4560 in the surface mounted micro-package allows the NJM4560 to be used in critical applications requiring very high packing densities. - PACKAGE OUTLINE NJM4560D ( DIP8) NJM4560M ( DMP8 ) - Features - Operating Voltage - Wide Gain Bandwidth Product - Slew Rate - Package Outline - Bipolar Technology NJM4560E ( ±4V~±18V ) ( SOP8 ) ( 10MHz typ. ) ( 4V/μs typ. ) DIP8, DMP8, SIP8, SOP8 JEDEC 150mil NJM4560L ( SIP8 ) - PIN CONFIGURATION ( Top View ) 1 2A 3B 8 7 6 5 NJM4560D, NJM4560M,...
