NJM4560D Overview
Description
The NJM4560 integrated circuit is a high-gain, wide bandwidth, dual operational amplifier capable of driving 20V peak-to-peak into 400Ω loads. The NJM4560 combines many of the features of the NJM4558 as well as providing the capability of wider bandwidth, and higher slew rate make the NJM4560 ideal for active filters, data and telecommunications, and many instrumentation applications.
Key Features
- Operating Voltage
- Wide Gain Bandwidth Product
- Package Outline
- Bipolar Technology NJM4560E ( ±4V~±18V ) ( SOP8 ) ( 10MHz typ. ) ( 4V/μs typ. ) DIP8, DMP8, SIP8, SOP8 JEDEC 150mil NJM4560L ( SIP8 )

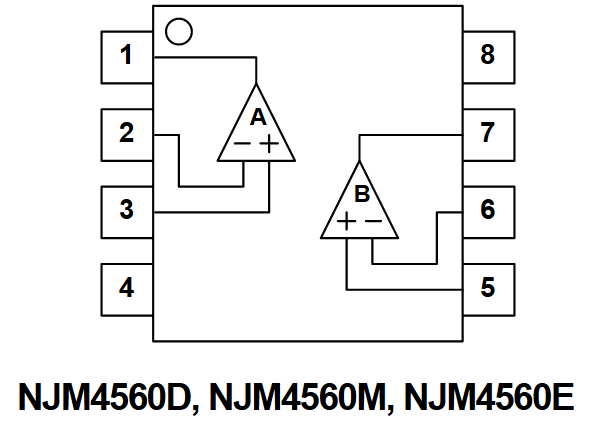

Representative NJM4560D image (package may vary by manufacturer)
