NJM555 - TIMER

Product Overview

New Japan Radio

Datasheet Details

Part number	NJM555
Manufacturer	New Japan Radio
File Size	187.11 KB
Description	TIMER
Datasheet	NJM555 Datasheet
Additional preview pages of the NJM555 datasheet.

Product details

Description

The NJM555 monolithic timing circuit is a highly stable controller capable of producing accruate time delays or oscillation.In the time delay mode, delay time is precisely controlled by only two external parts : a resistor and a capacitor.For operation as an oscillator, both the free running frequency and the duty cycle are accurately controlled by two external resistors and a capacitor.Terminals are provided for triggering and resetting.The circuit will trigger and reset on falling waveform

Features

S.
Operating Voltage (4.5V to 16V).
Less Number of External Components.
Package Outline DIP8, DMP8, SSOP8, SIP8.
Bipolar Technology NJM555L NJM555V.

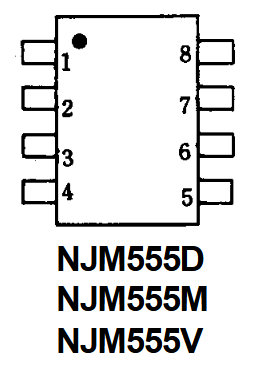

PIN.
